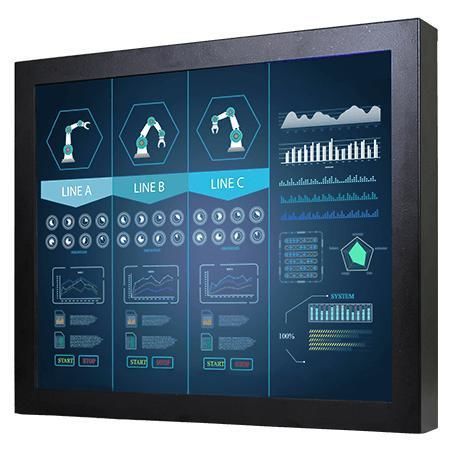

Resistive touch screen monitor R15L100-CHA3WT

15"1024 x 768VESA mounting

Overview
Winmate R15L100-CHA3WT is a 15-inch chassis wide-temperature display designed for industrial visualization, control rooms and equipment monitoring. It provides 1024 x 768 resolution, multiple video input options and a rugged metal chassis suitable for wide temperature operation (-20~60°C).

Key Features

• 15 inches display, 1024 x 768 resolution
• VGA (default); HDMI and DVI optional
• Chassis mount form factor with VESA mounting
• Wide operating temperature: -20~60°C
• Panel brightness 500 nits; fanless cooling

Certifications

• CE
• FCC

Product Highlights
Engineered for low power consumption and effective heat dissipation to support long-term use in production environments. Universal mounting options enable wall and desk installation. Available with resistive touch (default) or optional touch/protection glass variants and multiple brightness options for diverse indoor and outdoor applications.

Display Ports and Options
Standard and optional video and audio connectivity accommodate various system integrations: USB for touch, VGA standard, HDMI/DVI optional, audio line-in and optional speakers. Multiple I/O and accessory variants available for customization.

Technical Specifications

• Display — Size: 15 inches
• Display — Resolution: 1024 x 768
• Display — Panel Brightness: 500 nits
• Display — Contrast Ratio: 2500:1
• Display — View Angles: 88, 88, 88, 88
• Display — Display Color: 16.7M Colors
• Display — Active Area: 304.1 x 228.1 mm
• Touch / Glass — Resistive Touch Screen (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• Environment — Operating Humidity: 30% to 90% (non-condensing)
• Environment — Operating Temperature: -20~60°C
• Environment — Storage Temperature: -25~65°C
• Certification — CE, FCC
• IO Ports — USB: 1 x USB for touch screen
• IO Ports — Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• IO Ports — Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Mechanical — Dimension: 349 x 230 x 50 mm
• Mechanical — Mounting: VESA Mount
• Mechanical — Enclosure: Metal housing with aluminum bezel
• Mechanical — Cooling System: Fanless design
• Accessory — Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Accessory — Optional: Remote controller (optional, varies by product)
• Power — Power Rating: 12V DC input
• Control — Buttons: 5 keys (-, +, Power, Esc, Enter)
