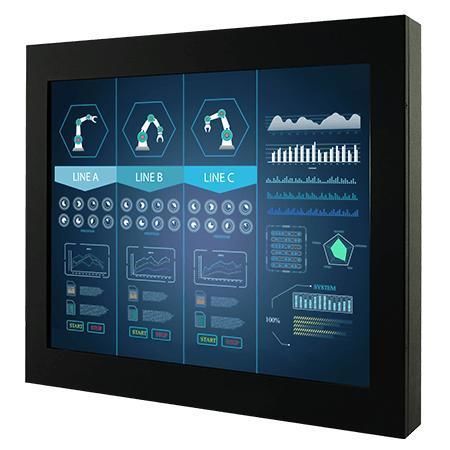

Monitor with touchscreen R17L500-CHM1

resistive touch screenindustrial17"

Overview
Winmate R17L500-CHM1 is a 17-inch chassis industrial touch display designed for industrial visualization, control rooms and equipment monitoring. It provides stable hardware integration, long lifecycle availability and configuration options suitable for OEMs and system integrators.

Key Features

• 17.0 inches, 1280 x 1024 resolution chassis display
• VGA (default), HDMI and DVI input options
• Chassis mounting with VESA support and metal housing
• Resistive touch (default); optional protection glass or SAW touch

Highlights

• Low power and thermal design: Engineered for low power consumption and effective heat dissipation for continuous operation in production environments.
• Flexible mounting: Universal options for wall, desk or chassis installation to fit varied industrial setups.
• Touch and display variants: Multiple touch technologies and brightness levels available to match indoor or controlled-environment use cases.
• Configurable I/O and customization: Multiple video ports, panel brightness and glass surface treatments; power plug and accessory options vary by region and model.
• Fanless mechanical design: Metal enclosure with aluminum bezel and fanless cooling for reduced maintenance.

Certifications

• CE
• FCC

Technical specifications

• Display - Size: 17.0 inches
• Display - Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Display - Resolution: 1280 x 1024
• Display - Panel Brightness: 350 nits
• Display - Contrast Ratio: 1000:1
• Display - View Angles: 85, 85, 80, 80
• Display - Display Color: 16.2M Colors
• Display - Active Area: 337.920 x 270.336 mm
• Environment - Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• IO Ports - USB: 1 x USB for touch screen
• IO Ports - Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• IO Ports - Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical - Dimension: 398 x 394 x 51.5 mm
• Mechanical - Mounting: VESA Mount
• Mechanical - Enclosure: Metal housing with aluminum bezel
• Mechanical - Cooling System: Fanless design
• Accessory - Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Accessory - Optional: Remote controller (optional, varies by product)
• Power - Power Rating: 12V DC input (24V DC optional)
• Control - Buttons: 5 keys: -, +, Power, Esc, Enter
