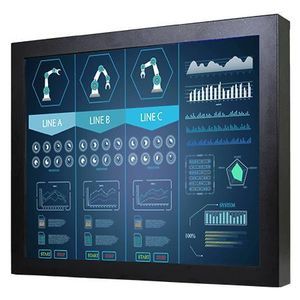

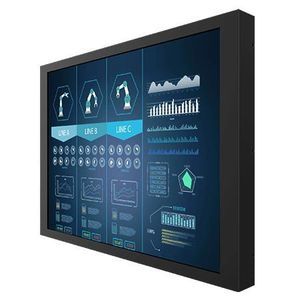

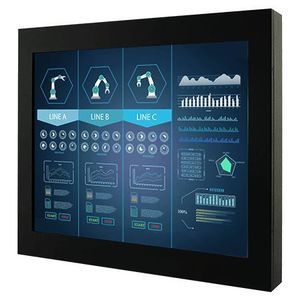

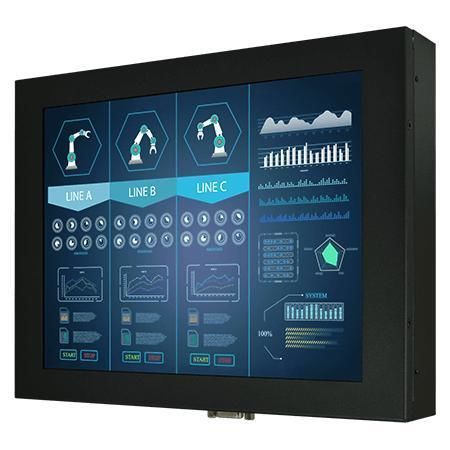

LCD monitor R10L600-CHP1

resistive touch screenindustrialfor HMI interface

Overview

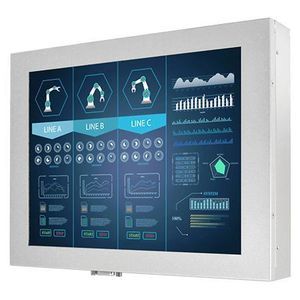

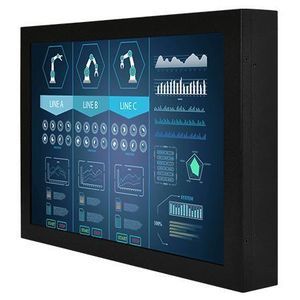

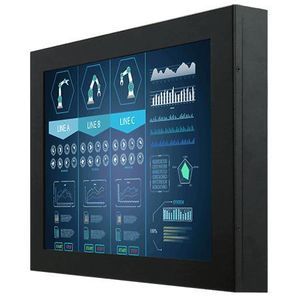

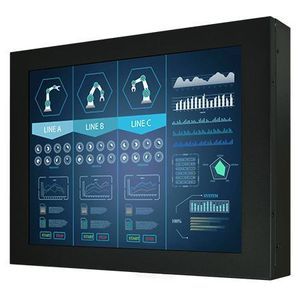

Winmate R10L600-CHP1 is a 10.4-inch chassis display engineered for industrial visualization, control rooms and equipment monitoring. It targets OEMs, system integrators and industrial buyers requiring long lifecycle availability, stable hardware integration and reliable field operation. The design emphasizes low power consumption and effective heat dissipation for continuous operation in production environments.

Key Features

• Display size: 10.4 inches, active area 211.2 x 158.4 mm
• Resolution: 800 x 600; Panel brightness: 600 nits; Contrast ratio: 400:1
• Video inputs: VGA (standard), HDMI (optional), DVI (optional)
• Mounting: chassis / VESA mount for cabinet or machinery integration
• Touch options: resistive touch (default); protection glass w/o touch or SAW touch optional

Product Highlights

• Fanless metal housing with aluminum bezel for high reliability in dusty or vibrating environments
• Low power consumption and efficient thermal design for continuous industrial use
• Flexible mounting options (wall, desk, cabinet) and standard VESA for OEM integration
• Customizable options: panel brightness, glass surface treatment, input ports and accessory set
• Resistive touch operable with gloves; optional SAW/protection-glass variants for specific use cases

Certifications

• CE
• FCC

Accessories & Options

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (may vary)
• Optional: remote controller; HDMI/DVI video inputs; audio features and speakers; 24V DC input option

Use Cases
Well suited for industrial visualization, SCADA/operator consoles, control cabinets and embedded equipment monitoring where dependable integration and long-term availability are required.

Technical specifications

• Model: R10L600-CHP1
• Display Size: 10.4 inches
• Resolution: 800 x 600
• Panel Brightness: 600.0 nits
• Contrast Ratio: 400:1
• View Angles: 70, 70, 70, 60 (degrees)
• Display Color: 262K Colors
• Active Area: 211.2 x 158.4 mm
• Touch / Glass: Resistive Touch (default); Protection Glass w/o touch (optional); SAW Touch (optional)
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certifications: CE, FCC
• IO Ports: 1 x USB for touch; Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x speaker (optional)
• Mechanical Dimension: 260 x 200 x 45 mm
• Mounting: VESA mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Power Rating: 12V DC input (24V DC optional)
• Control: 5 keys: -, +, Power, Esc, Enter
• Included Accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Optional Accessory: Remote controller (optional, varies)
