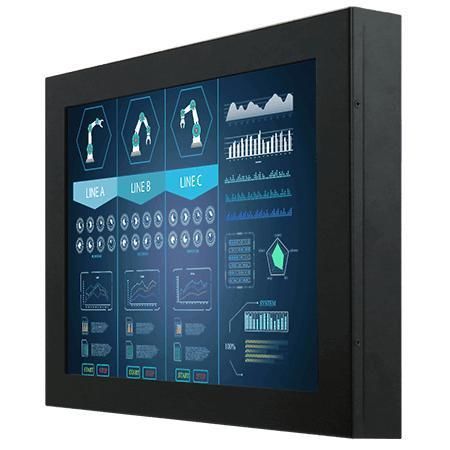

LCD monitor R15L600-CHC3

resistive touch screenfor industrial machinesfor HMI interface

Overview
Winmate R15L600-CHC3 is a 15" chassis display for industrial visualization, control rooms and equipment monitoring. It is engineered for embedded and mission-critical applications requiring stable hardware integration, long lifecycle availability and continuous operation.

Key Features

• 15" display, 1024 x 768 resolution
• VGA input (standard); HDMI and DVI optional
• Chassis mount form factor with VESA support
• Metal housing, aluminum bezel and fanless design

Details & Applications

• Low power consumption and effective heat dissipation for sustained operation in production environments
• Flexible mounting: wall, desk or chassis installation via VESA-compatible options
• Touch options: resistive touch (default), protection glass (no touch) or SAW touch available
• Customization: panel brightness, glass treatment, display ports, country-specific power plug and customer logo
• Suitable for OEMs, system integrators, control rooms and industrial monitoring stations

Certifications

• CE
• FCC

Technical specifications

• Display: Size: 15.0 inches; Resolution: 1024 x 768; Panel Brightness: 300 nits; Contrast Ratio: 2000:1; View Angles: 88/88/88/88; Display Color: 16.2M Colors; Active Area: 304.1 x 228.1 mm; Touch/Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• Environment: Operating Humidity: 10% to 90% RH, non-condensing; Operating Temperature: 0°C to 50°C; Storage Temperature: -10°C to 60°C
• IO Ports: USB: 1 x USB for touch; Video: 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional); Audio: Audio line-in (3.5mm) (Optional); Speakers: 2 x (Optional)
• Mechanical: Dimensions: 369.6 x 289.6 x 47 mm; Weight: 3.5 kg; Mounting: VESA mount; Enclosure: Metal housing with aluminum bezel; Cooling: Fanless design
• Accessory: Included: 1 x VGA cable, 1 x HDMI cable, 100–240V AC to DC adapter, Power cord, Manual, VESA screws (varies). Optional: Remote controller
• Power: Power Rating: 12V DC input (standard), 24V DC input (optional)
• Control: Buttons: 5 keys (-, +, Power, Esc, Enter)
