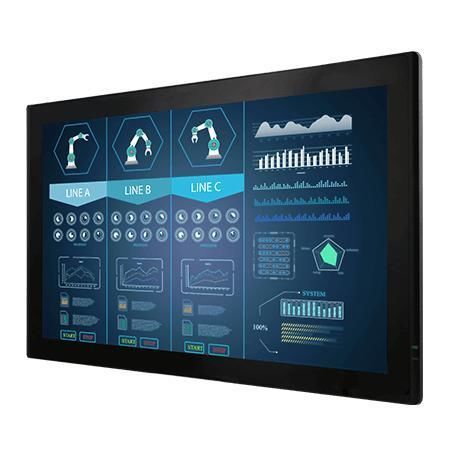

TFT-LCD monitor W32L300-CHA3TR

resistive touch screenprojected capacitive touchscreen32"

Product Overview
Winmate W32L300-CHA3TR is a 32-inch transflective chassis display designed for industrial visualization, control rooms and equipment monitoring. It pairs a Full HD (1920 x 1080) panel with transflective technology to improve readability in variable ambient light and is built in a fanless metal enclosure for reliable continuous operation.

Key Features

• 32" display, 1920 x 1080 (Full HD)
• Transflective panel for enhanced viewing under ambient light
• Panel brightness: 400 nits; contrast ratio: 4000:1
• VGA input (default); HDMI and DVI optional
• Chassis mount design with VESA support and optional IP65 front protection
• Fanless design and metal enclosure for industrial 24/7 use
• Touch options: resistive, SAW or PCAP depending on configuration

Applications

• Industrial automation and machine control
• Control rooms and monitoring stations
• OEM integration and embedded systems
• Outdoor information displays and sunlight-readable signage (selected variants)
• Marine, offshore and transportation monitoring

Technical Specifications

• Model: W32L300-CHA3TR
• Size: 32 inches
• Resolution: 1920 x 1080 (Full HD)
• Display color: 16.7M colors
• Active area: 698.4 x 392.85 mm
• Panel brightness: 400 nits
• Contrast ratio: 4000:1
• Viewing angles: 89°/89°/89°/89°
• Front panel protection: IP65 (front, dust/splash)
• Enclosure: Metal
• Cooling: Fanless design
• Dimensions (W x H x D): 790.8 x 470.8 x 70 mm

Ports & Audio

• Video I/O: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line-in (3.5 mm) optional; 2 x speakers optional

Mounting & Mechanical

• Chassis mount and VESA mount support for panel or rack integration
• Standard accessories vary by product but typically include VGA/HDMI cables and VESA screws

Environmental & Power

• Operating humidity: 10% to 90% (non-condensing)
• Operating temperature: 0 ~ 50°C
• Storage temperature: -10 ~ 60°C
• Power rating: 24V DC input

Certifications

• CE
• FCC

Accessories

• Included: 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional: Remote controller and other configuration-specific accessories
