Resistive touch screen monitor R17L500-CHA1TR

projected capacitive touchscreenindustrialfor displays

Product Name

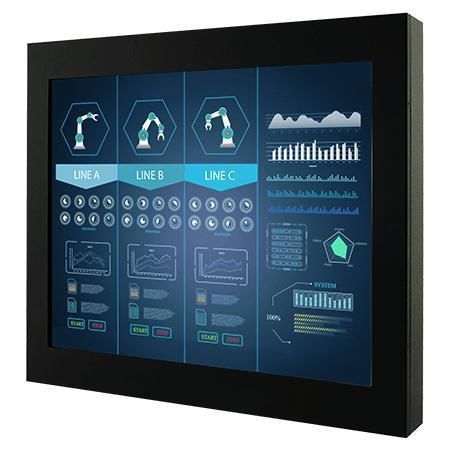

Winmate R17L500-CHA1TR — 17-inch chassis transflective display

Summary
Winmate R17L500-CHA1TR is a 17-inch chassis transflective display for industrial visualization, control rooms and equipment monitoring. It is intended for embedded and mission-critical environments requiring stable hardware integration, low power consumption and long lifecycle availability.

Key Features

• 17-inch, 1280 x 1024 resolution
• VGA input (standard); HDMI, DVI optional
• Chassis-type enclosure with VESA mount and metal housing
• Transflective panel for improved readability; 350 nits (typ.)
• Optional resistive or PCAP touch; fanless design

Certifications

• CE
• FCC

Overview / Product Details

• Low power consumption and effective heat dissipation for continuous operation in production and industrial facilities.
• Universal mounting options for wall and desk installation; VESA-compatible.
• Chassis-mount form factor with multiple brightness and mechanical customization options.
• Rugged metal enclosure and long-term component availability for industrial deployments.

Technical Specifications

• Display Size: 17.0 inches
• Touch / Glass: Resistive Touch (Optional); Protection Glass w/o Touch (Optional)
• Resolution: 1280 x 1024
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 85,85,80,80
• Colors: 16.7M
• Active Area: 337.920 x 270.336 mm
• Operating Humidity: 10%–90% RH non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB: 1 x USB for touch
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) Optional; 2 x Speaker Optional
• Dimensions: 398 x 349 x 51.5 mm
• Mounting: VESA Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling: Fanless Design
• Included Accessory: VGA cable, HDMI cable, 100~240V AC-DC adapter, power cord, manual, VESA screws (varies)
• Optional Accessory: Remote controller (varies)
• Power: 12V DC input (24V DC optional)
• Control: 5 keys: -, +, Power, Esc, Enter
