LCD monitor W15L100-CHA2

resistive touch screencapacitive touch screenindustrial

Overview

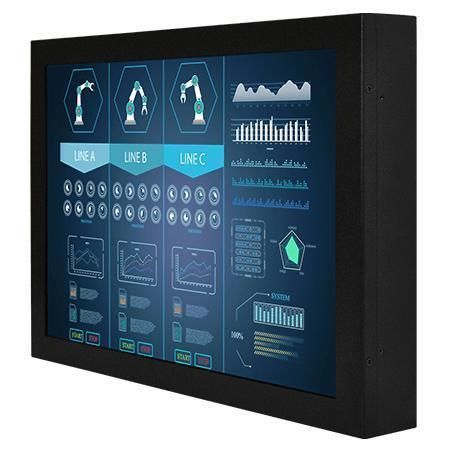

Winmate W15L100-CHA2 is a 15.6-inch chassis display for industrial visualization, control rooms and equipment monitoring. It delivers stable hardware integration and long lifecycle availability for OEMs and system integrators, suitable for embedded and mission-critical environments.

Key Features

• 15.6-inch diagonal display, 1366 × 768 resolution
• VGA input (default); HDMI and DVI optional
• Chassis-mount form factor with VESA support
• Optional resistive or capacitive/SAW touch and protection glass variants

Low Power Consumption
Designed for low power draw with efficient heat dissipation and fanless cooling to support prolonged operation in production and industrial sites.

Easy Mounting
Universal mounting options (wall, desk and VESA) enable flexible installation across control rooms, machine panels and equipment housings.

Chassis Mount Display
The chassis form factor supports integration into cabinets and control panels. Touchscreen and non-touch protection glass options allow adaptation to application requirements.

High Reliability
Metal enclosure and rugged design provide dependable 24/7 operation; available with different housing materials and panel brightness levels to match environmental needs.

Image Quality
Engineered to deliver clear images for HMI and monitoring applications with 16.7M colors, 400 nits brightness and a 500:1 contrast ratio.

Display Ports and Customization
Multiple video interfaces and customization options: panel brightness, cover glass treatment, I/O configuration and regional power choices to suit OEM and system integrator requirements.

Specifications

• Display: Size: 15.6 inches; Resolution: 1366 × 768; Panel Brightness: 400 nits; Contrast Ratio: 500:1; View Angles: 85/85/80/80; Display Color: 16.7M Colors; Active Area: 344.232 × 195.536 mm
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without Touch Function (Optional)
• Environment: Operating Humidity: 10% to 90% RH (non-condensing); Operating Temperature: 0°C to 50°C; Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO Ports:
  • USB: 1 × USB for Touch Screen
  • Video: 1 × VGA (Default); 1 × HDMI (Optional); 1 × DVI (Optional)
  • Audio: Audio line in (3.5 mm) (Optional); 2 × Speaker (Optional)
• Mechanical: Dimension: 372.3 × 225 × 55 mm; Weight: 3.6 kg; Mounting: VESA Mount; Enclosure: Metal; Cooling System: Fanless Design
• Accessory: 1 × VGA cable; 1 × HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power: Power Rating: 12V DC input; 24V DC input (optional)
• Control: Buttons: 5 Keys: -, +, Power, Esc, Enter
