LCD monitor R10L600-CHP1TR

resistive touch screenprojected capacitive touchscreenindustrial

Overview

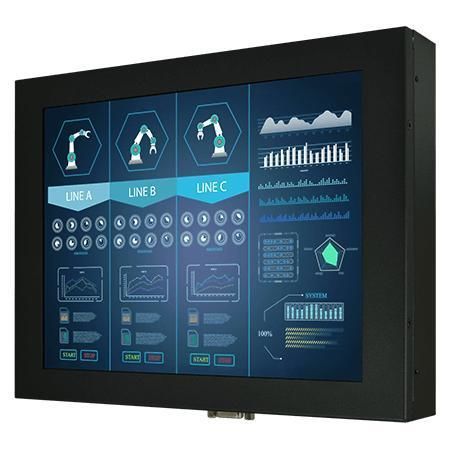

Winmate R10L600-CHP1TR is a 10.4 in chassis transflective display designed for industrial visualization, control rooms and equipment monitoring. It is suited to embedded and mission-critical environments requiring reliable operation, long lifecycle availability and readable performance in varied lighting conditions.

Key features

• 10.4 in display, 800 x 600 resolution (SVGA)
• VGA input (standard), HDMI and DVI optional
• Chassis-type industrial display with VESA mount
• Transflective panel technology for improved readability; panel brightness 700 nits

Product details

• Low power consumption and effective heat dissipation for continuous operation in production environments
• Universal mounting options: wall, desk and panel/VESA integration
• Chassis-mount design available with resistive touch (default) and optional protection glass, SAW or PCAP touch
• Rugged metal enclosure with aluminum bezel for mechanical stability
• Fanless cooling for silent, low-maintenance use
• I/O and customization: USB for touch, VGA/HDMI/DVI video options, audio line-in and speaker options, configurable panel brightness and regional power plug
• Accessories included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws; optional remote control
• Power: 12V DC input standard; 24V DC optional
• Control: 5 front keys (-, +, Power, Esc, Enter)

Certifications

• CE
• FCC

Applications

• Industrial HMI and machine control panels
• Control rooms and monitoring stations
• Embedded equipment and OEM system integration
• Kiosk, vehicle terminals and kiosks where transflective readability is required

Specifications

• Display Size: 10.4 inches
• Resolution: 800 x 600
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional); PCAP possible
• Panel Brightness: 700 nits
• Contrast Ratio: 400:1
• View Angles: 70, 70, 70, 60
• Display Color: 262K Colors
• Active Area: 211.2 x 158.4 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB: 1 x USB for touch
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Dimensions: 260 x 200 x 45 mm
• Mounting: VESA Mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
