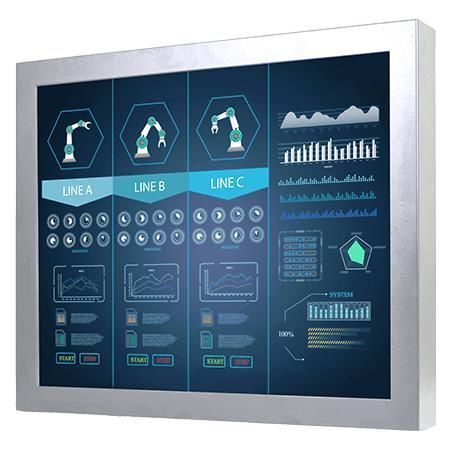

TFT-LCD monitor R17L500-CHA1WT

resistive touch screenindustrial17"

Overview
The Winmate R17L500-CHA1WT is a 17-inch industrial chassis touch display for visualization, control rooms, equipment monitoring and OEM integration. It provides a chassis-mount form factor, metal enclosure, fanless cooling and a wide operating temperature range for embedded and mission-critical environments.

Key features

• 17.0" diagonal TFT-LCD, 1280 x 1024 resolution
• VGA input (default); HDMI and DVI optional
• Chassis-mount with VESA mounting option
• Wide operating temperature: -20°C to 60°C
• Panel brightness 350 nits, contrast ratio 1000:1
• Optional resistive touch or protection glass without touch
• Metal enclosure and fanless design

Applications

• Industrial HMI and machine control
• Control rooms and monitoring stations
• OEM equipment integration and kiosks
• Embedded systems requiring reliable long-term operation

Technical specifications

• Model: R17L500-CHA1WT
• Brand: Winmate
• Display size: 17.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive touch (optional); Protection glass w/o touch (optional)
• Panel brightness: 350.0 nits
• Contrast ratio: 1000:1
• View angles: 85, 85, 80, 80
• Display color: 16.7M Colors
• Active area: 337.920 x 270.336 mm
• Operating humidity: 30% to 90% RH, non-condensing
• Operating temperature: -20°C to 60°C
• Storage temperature: -25°C to 65°C
• Certifications: CE, FCC
• USB: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line-in (3.5mm) optional; 2 x speakers optional
• Dimensions (mechanical): 381 x 272 x 55 mm
• Mounting: VESA mount
• Enclosure: Metal
• Cooling: Fanless design
• Power: 12V DC in; 24V DC in (optional)
• Controls: 5 keys (-, +, Power, Esc, Enter)
• Included accessories: VGA cable, HDMI cable, 100~240V AC-DC adapter, power cord, manual, VESA screws (varies)

Customization & compliance

• Custom options: panel brightness, glass treatment, display ports, power plug style, customer logo
• Regional power and accessory variants available
• Meets CE and FCC certification requirements
