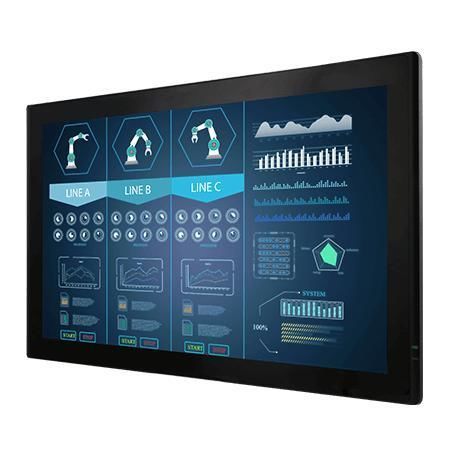

LCD monitor W32L300-CHA3

multitouch screenLED backlightprojected capacitive touchscreen

Product Summary
Winmate W32L300-CHA3 is a 32-inch chassis-mount industrial LCD display for visualization, control rooms and equipment monitoring. It features a projected-capacitive (P-CAP) multi-touch panel, front IP65 protection, fanless/ventless design and multiple video input options for seamless integration into industrial systems.

Key Features

• 32-inch 1920 x 1080 Full HD with P-CAP multi-touch
• Bottom-side control keys x5 (-, +, Power, Esc, Enter)
• Fanless and ventless construction for easy cleaning and low maintenance
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Front panel rated IP65 for dust and splash protection

Overview / Benefits
Low Power Consumption
Designed for efficient power use and effective heat dissipation to support continuous operation in production environments.

Easy Mounting
Provides VESA mounting options for wall, panel or desk integration, simplifying installation in control rooms and machines.

High Reliability for Industrial Applications
Rugged enclosure and industrial-grade components ensure long-term reliability; configurable housing and panel treatments available to match application requirements.

Outstanding Image Quality
LED backlight and Full HD panel deliver consistent image quality; touch options include projected capacitive with multi-touch and other technologies on request.

Display Ports and Customization
Customizable ports, panel brightness, glass surface treatment and product size. Power input options (12V DC standard, 24V DC optional) and accessories vary by configuration.

Certifications

• CE
• FCC

Included / Optional Accessories

• Included (example): VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional: Remote controller (varies by product)

IO & Storage Highlights
Example configuration: 1 x USB for touchscreen, 2 x USB 2.0, 1 x USB OTG, 1 x LAN, 2 x COM, 1 x SD socket, 4GB eMMC (configuration dependent).

Product FAQs (summary)

• Suitable for control rooms, monitoring stations and production lines due to multi-input support and industrial-grade design.
• Front IP65 and fanless design reduce dust ingress and simplify maintenance in harsh environments.
• 400 nits brightness and 4000:1 contrast ensure good visibility in bright or window-lit installations.

Specifications

• Model: W32L300-CHA3
• Display Size: 32.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 400 nits
• Contrast Ratio: 4000:1
• View Angles: 89 / 89 / 89 / 89
• Display Color: 16.7M Colors
• Active Area: 698.4 x 392.85 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certifications: CE, FCC
• USB Port: 1 x USB for touch (plus additional USB ports in system I/O)
• Video Inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: 2 x Speaker
• Dimensions: 799 x 478 x 63.7 mm
• Mounting: VESA mount
• Enclosure: Plastic (chassis mounting metal enclosure available by configuration)
• Cooling: Fanless design
• Power Rating: 12V DC in (24V DC optional)
• Control / Buttons: 5 keys (-, +, Power, Esc, Enter)
• Storage & I/O example: 1 x SD socket, 4GB eMMC, 1 x LAN, 2 x COM, 2 x USB 2.0, 1 x USB OTG (configuration dependent)
