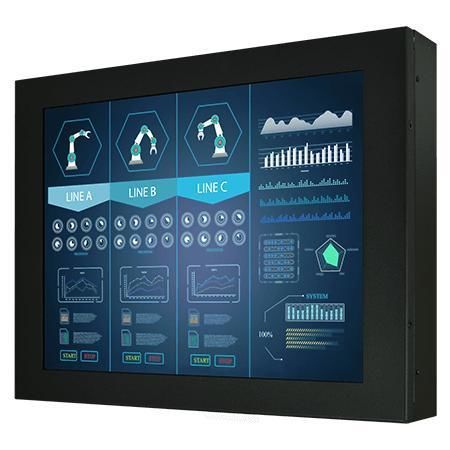

LCD monitor R15L100-CHA1TR

resistive touch screen15"1024 x 768

Overview
The R15L100-CHA1TR is a 15" chassis transflective display designed for industrial visualization, control rooms and equipment monitoring. It targets OEMs, system integrators and industrial buyers requiring a long-lifecycle, low-power display with multiple mounting options and robust thermal behaviour.

Key features

• 15" transflective panel, 1024 x 768 resolution
• VGA input (default) with HDMI and DVI optional
• Chassis / VESA mount compatible
• Available with resistive, SAW or protection-glass (no touch) options
• Fanless metal housing and multiple brightness variants

Product details

• Low power consumption and effective heat dissipation for continuous industrial use
• Universal mounting options: wall, desk or panel installations
• Chassis mount form factor suitable for OEM integration and retrofit projects
• Customization: panel brightness, glass treatment, I/O port selection and region-specific power plugs
• Optional audio, speakers and remote control depending on configuration

Certifications

• CE
• FCC

Technical specifications

• Display — Size: 15.0 inches
• Display — Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Display — Resolution: 1024 x 768
• Display — Panel Brightness: 610 nits
• Display — Contrast Ratio: 700:1
• Display — View Angles: 88, 88, 88, 88
• Display — Display Color: 16.2M Colors
• Display — Active Area: 304.1 x 228.1 mm
• Environment — Operating Humidity: 10% to 90% RH, non-condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -10°C to 60°C
• IO Ports — USB Port: 1 x USB for Touch Screen
• IO Ports — Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• IO Ports — Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical — Dimension: 370 x 290 x 47 mm
• Mechanical — Mounting: VESA Mount
• Mechanical — Enclosure: Metal Housing with Aluminum Bezel
• Mechanical — Cooling System: Fanless Design
• Accessory — Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Accessory — Optional: Remote Controller (Optional, varies by product)
• Power — Power Rating: 12V DC input (24V DC optional)
• Control — Button: 5 Keys: -, +, Power, Esc, Enter
