TFT monitor R10L100-CHT2
resistive touch screenfor industrial machinesfor HMI interface

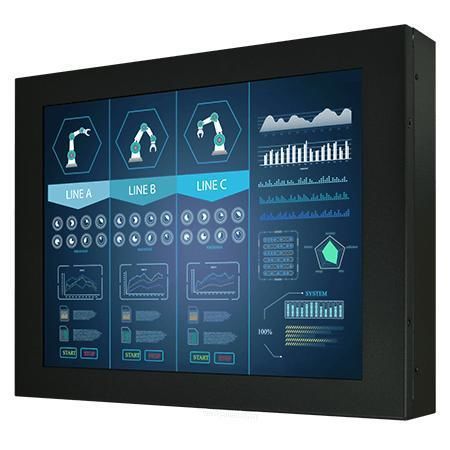

TFT monitor - R10L100-CHT2 - Winmate, Inc. - resistive touch screen / for industrial machines / for HMI interface
TFT monitor - R10L100-CHT2 - Winmate, Inc. - resistive touch screen / for industrial machines / for HMI interface
TFT monitor - R10L100-CHT2 - Winmate, Inc. - resistive touch screen / for industrial machines / for HMI interface - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
TFT, resistive touch screen
Applications
for industrial machines, for HMI interface
Display size
10.4"
Resolution
1024 x 768
Mounting
VESA mounting, wall-mount, desktop, for integration, chassis-mounted, housed
Other characteristics
HDMI, VGA, aluminum, high-brightness, DVI port, fanless, wide viewing angle
Width

259.6 mm
(10.2205 in)

Height

196.6 mm
(7.7402 in)

Thickness

45 mm
(1.772 in)

Operating temperature

Min.: 0 °C
(32 °F)

Max.: 50 °C
(122 °F)

Description

Overview
Winmate R10L100-CHT2 is a 10.4-inch industrial chassis display for industrial visualization, control rooms and equipment monitoring. It provides stable hardware integration, dependable field operation and long lifecycle availability for OEMs and system integrators.

Key features
  • 10.4 inches TFT, 1024 x 768 resolution
  • Resistive touch screen (default); protection glass w/o touch and SAW touch optional
  • VGA input standard; HDMI and DVI optional
  • Chassis mount with VESA support; metal housing with aluminum bezel
  • Fanless design; panel brightness 350 nits; contrast ratio 1000:1

Product highlights & benefits
  • Low power consumption and effective heat dissipation for continuous use in production environments
  • Universal mounting options for wall, desk or enclosure integration
  • Selectable touch technologies to match application requirements (resistive, SAW, protection glass)
  • Rugged metal enclosure and fanless design for reliable industrial operation
  • Multiple video ports to support legacy and modern control systems

Certifications
CE and FCC certified for safety and electromagnetic compatibility.

Technical specifications
  • Display Size: 10.4 inches
  • Resolution: 1024 x 768
  • Panel Brightness: 350 nits
  • Contrast Ratio: 1000:1
  • View Angles: 88, 88, 88, 88
  • Display Color: 16.2M Colors
  • Active Area: 210.4 x 157.8 mm
  • Touch / Glass: Resistive (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -10°C to 60°C
  • IO Ports: 1 x USB (touch); Video: 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional)
  • Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
  • Mechanical Dimensions: 259.6 x 196.6 x 45 mm; Mounting: VESA Mount
  • Enclosure: Metal housing with aluminum bezel; Cooling: Fanless design
  • Accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
  • Options: Remote controller; Power input: 12V DC (24V DC optional); Controls: 5 keys (-, +, Power, Esc, Enter)
