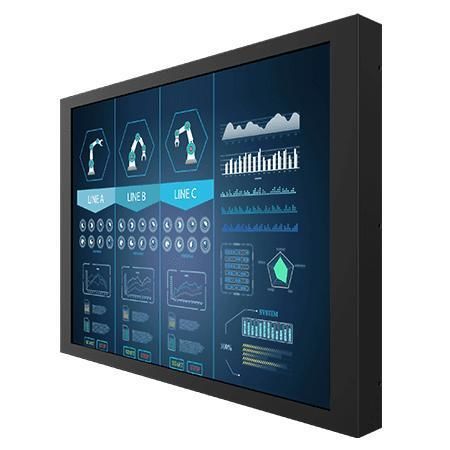

LCD monitor R21L100-CHM1

resistive touch screenindustrial21.3"

Product overview
Winmate R21L100-CHM1 is a 21.3 in chassis display engineered for industrial visualization, control rooms and equipment monitoring. It delivers 1600 x 1200 resolution, high brightness options, multiple video inputs and a robust metal enclosure with fanless cooling for long-term operation in industrial environments.

Key features

• 21.3 in display, 1600 x 1200 resolution
• VGA input (default); HDMI and DVI available as options
• Chassis-mount form factor with VESA compatibility
• High panel brightness (1000 nits typical) and 1800:1 contrast ratio

Product details
The display is optimized for low power consumption and effective heat dissipation to support continuous operation in production floors and control rooms. Mounting options include wall, desk and standard chassis integration. The unit can be supplied with a resistive touch screen or with protection glass without touch functionality; multiple size and brightness configurations are available to suit indoor applications.

Certifications

• CE
• FCC

Display & optics
The panel supports 16.8M colors, wide viewing angles (89/89/89/89) and an active area of 432 x 324 mm. Typical brightness is 1000 nits with a contrast ratio of 1800:1.

IO ports & audio

• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• USB: 1 x USB for touch screen
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)

Mechanical & mounting
Robust metal enclosure, VESA mount compatible. Mechanical dimensions: 491 x 360 x 65 mm. Fanless design for silent, low-maintenance operation.

Environment & power
Operating humidity: 10% to 90% RH (non-condensing). Operating temperature: 0°C to 50°C. Storage temperature: -10°C to 60°C. Power rating: 12V DC in (standard); 24V DC in (optional). Typical accessories: VGA and HDMI cables, 100~240V AC to DC adapter, power cord, manual and VESA screws; optional remote controller depending on configuration.

Control
On-unit control via 5 keys: -, +, Power, Esc, Enter.

Technical specifications

• Model: R21L100-CHM1
• Brand: Winmate
• Size: 21.3 inches
• Resolution: 1600 x 1200
• Panel Brightness: 1000 nits (typical)
• Contrast Ratio: 1800:1
• View Angles: 89/89/89/89
• Display Color: 16.8M Colors
• Active Area: 432 x 324 mm
• Touch / Glass: Resistive touch screen (optional); Protection glass without touch (optional)
• Video Inputs: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• USB: 1 x USB for touch screen
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 491 x 360 x 65 mm
• Mounting: VESA mount
• Enclosure: Metal
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• Power Rating: 12V DC in; 24V DC in (optional)
• Accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional, varies by product)
• Control Buttons: 5 keys: -, +, Power, Esc, Enter
