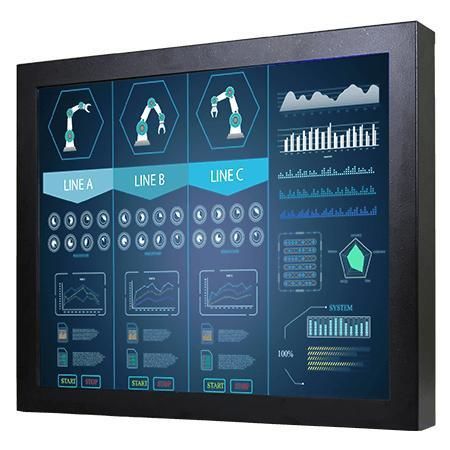

Resistive touch screen monitor R19L300-CHA1HB

for displays19"1280 x 1024

Product Overview
The R19L300-CHA1HB is a 19" chassis high-brightness display designed for industrial visualization, control rooms and equipment monitoring. Its metal enclosure, fanless cooling and VESA-compatible chassis form factor support continuous 24/7 operation in embedded and harsh environments. The unit accepts multiple touch and glass configurations to fit varied integration needs.

Key Features

• 19" diagonal, 1280 x 1024 resolution
• High brightness panel: 1000 nits
• Standard VGA input; optional HDMI and DVI
• Chassis-mount form factor with VESA mounting
• Touch options: Resistive (default); Protection Glass (no touch); SAW touch (optional)
• Metal enclosure and fanless design for industrial reliability

Highlights & Benefits

• Engineered for long-term industrial use: low power draw and effective heat dissipation enable continuous operation in production and control environments
• Flexible installation: VESA and chassis-mount options allow wall, panel or desk integration
• Improved outdoor/bright-environment readability through anti-reflective protection glass and optical bonding
• Multiple I/O and accessory choices (USB for touch, audio line-in, speakers, remote controller option) simplify system integration
• Customizable configurations available: panel brightness, glass treatment, display ports and power input options (12V DC standard, 24V optional)

Certifications

• CE
• FCC

Technical Specifications

• Size: 19.0 inches
• Resolution: 1280 x 1024
• Panel Brightness: 1000 nits
• Contrast Ratio: 1000:1
• View Angles: 85 / 85 / 80 / 80
• Display Color: 16.7M colors
• Active Area: 376.32 x 301.06 mm
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IO Ports: 1 x USB (for touch)
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line-in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Mechanical Dimensions: 430 x 355 x 40 mm
• Mounting: VESA mount / chassis mount
• Enclosure: Metal
• Cooling System: Fanless design
• Accessories (standard): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional)
• Power Rating: 12V DC input (24V DC optional)
• Control: 5 keys: -, +, Power, Esc, Enter
