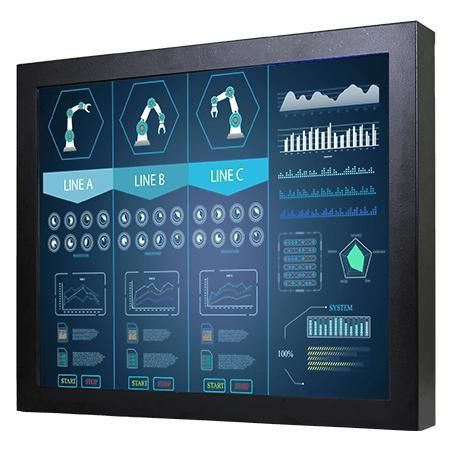

Resistive touch screen monitor R19L300-CHA1

projected capacitive touchscreenindustrialfor displays

Overview
Winmate R19L300-CHA1 is a 19" chassis display designed for industrial visualization, control rooms, and equipment monitoring. It targets industrial buyers, OEMs, and system integrators who need a long-lifecycle, mountable display for embedded and mission-critical applications.

Key Features

• 19" display, 1280 x 1024 resolution
• VGA (default), HDMI and DVI options
• Chassis mount format with VESA support
• Resistive (default) or optional touch technologies

Low Power Consumption
Designed for low power consumption and effective heat dissipation, suitable for continuous operation in production and control environments.

Easy Mounting
Universal mounting options enable wall, desk or chassis integration for flexible installation across industrial applications.

Chassis Mount Display
Available with resistive touch, optional capacitive/SAW or protection glass; multiple brightness and size configurations for indoor and outdoor use.

High Reliability for Industrial Applications
Rugged enclosure and industrial-grade assembly ensure reliable long-term operation in factory and embedded systems. Configurable housing materials and optional features support varied use cases.

High Image Quality
Industrial-grade panels and controlled assembly deliver consistent image performance. Display modules are prepared for further integration and processing.

Display Ports and Customization
Customization options include panel brightness, glass treatment, IO ports, regional power plug styles, and customer logo. Multiple IO and accessory configurations are supported.

Characteristics / Technical specifications

• Size: 19.0 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 1280 x 1024
• Panel Brightness: 400 nits
• Contrast Ratio: 1000:1
• View Angles: 85, 85, 80, 80
• Display Color: 16.7M Colors
• Active Area: 376.32 x 301.06 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC input; 24V DC input (optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
