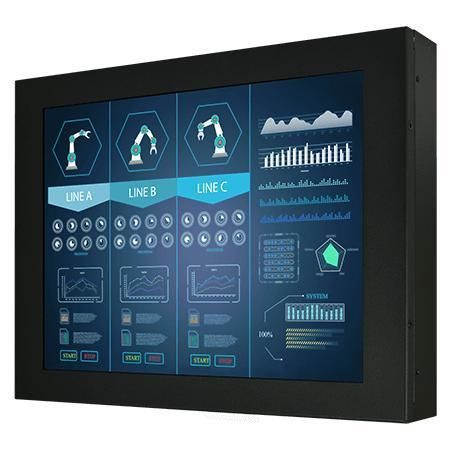

Resistive touch screen monitor R15L100-CHC3HB

industriallow-pressurefor HMI interface

Overview
Winmate R15L100-CHC3HB is a 15" chassis high brightness display designed for industrial visualization, control rooms, and equipment monitoring. It provides reliable 24/7 operation with a fanless design, rugged metal housing, long lifecycle availability, VESA mounting and an optional IP65-rated front enclosure for dust and low-pressure water jet protection.

Key Features

• 15" diagonal, 1024 x 768 resolution
• VGA input (default); optional HDMI and DVI
• Chassis form factor with VESA mount
• High brightness 1000 nits with optical bonding and anti-reflective glass
• Resistive touch screen (default); optional protection glass or SAW touch

Product Highlights
Low power consumption and effective heat dissipation for durable continuous operation in production facilities.
Easy mounting: universal options for wall, desk or panel installation enable flexible deployment.
High readability under direct sunlight thanks to 1000 nit panel, optical bonding and anti-reflective treatment to reduce reflections and improve contrast.
Chassis-mount display available with resistive or optional SAW/PCAP touch and different brightness options for indoor/outdoor use.
High reliability: fanless metal enclosure and clean-room assembled display modules for stable operation in industrial environments.
Outstanding image quality with 16.2M colors and 2000:1 contrast ratio for clear visualization of industrial HMI and monitoring screens.

Certifications

• CE
• FCC

Specifications

• Size: 15.0 inches
• Resolution: 1024 x 768
• Panel Brightness: 1000 nits
• Contrast Ratio: 2000:1
• View Angles: 88,88,88,88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• IO Ports: USB - 1 x USB for Touch Screen; Video - 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IP Rating: IP65-rated enclosure option for dust and low-pressure water jet protection
• Accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC input (24V DC optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
