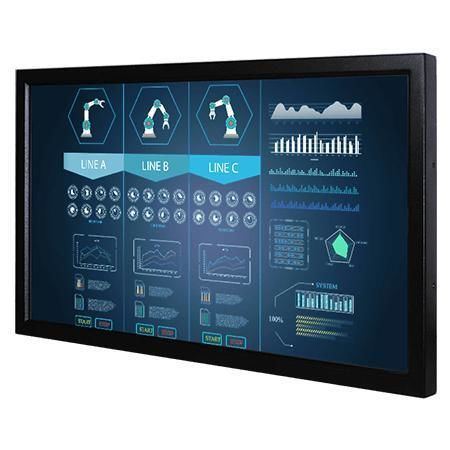

Resistive touch screen monitor W32L300-CHA3HB

projected capacitive touchscreenindustrialfor displays

Overview
The Winmate W32L300-CHA3HB is a 32-inch chassis high-brightness display designed for industrial visualization, control rooms and equipment monitoring. It supports continuous 24/7 operation with a fanless metal enclosure, optical bonding and anti-reflective front glass for improved readability in bright environments. Universal mounting options and customizable I/O provide flexibility for embedded and industrial installations.

Key Features

• 32" Full HD (1920 x 1080)
• Panel brightness: 1500 nits (sunlight readable)
• VGA input standard; HDMI and DVI optional
• Chassis form factor with VESA mount
• Fanless design and metal enclosure for industrial reliability
• Touch options: Protection Glass with resistive, SAW or projected-capacitive variants

Certifications

• CE
• FCC

Accessories

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (may vary)
• Optional: Remote controller, speakers, audio line-in

Technical specifications

• Model: W32L300-CHA3HB
• Size: 32 inches
• Resolution: 1920 x 1080
• Panel Brightness: 1500 nits
• Contrast Ratio: 4000:1
• Viewing Angles: 89/89/89/89
• Display Color: 16.7M colors
• Active Area: 698.4 x 392.85 mm
• Touch / Glass: Protection Glass (touch options per configuration)
• Operating Humidity: 10% to 90% (non-condensing)
• Operating Temperature: 0 ~ 50°C
• Storage Temperature: -10 ~ 60°C
• Certifications: CE, FCC
• USB: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line-in (3.5mm) optional; 2 x speaker optional
• Mechanical Dimension: 790.8 x 470.8 x 71 mm
• Mounting: VESA mount
• Enclosure: Metal
• Cooling: Fanless design
• Power Rating: 24V DC in (12V variants noted in some configurations)
• Control: 5 keys: -, +, Power, Esc, Enter
