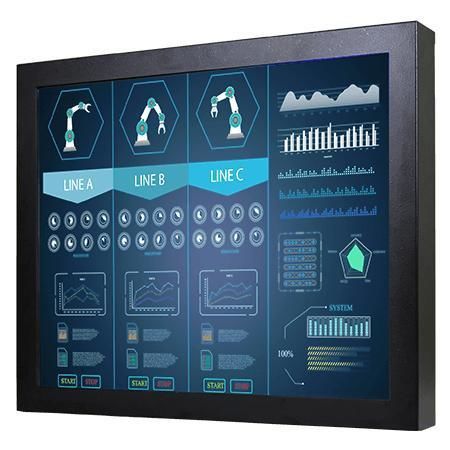

LCD monitor R19L300-CHM1

resistive touch screenindustrialfor displays

Overview
Winmate R19L300-CHM1 is a 19-inch chassis display engineered for industrial visualization, control rooms and equipment monitoring. It is aimed at industrial buyers, OEMs and system integrators who need reliable hardware integration, stable field operation and long lifecycle availability.

Key Features

• 19 inches, 1280 x 1024 resolution
• VGA (default) and HDMI (optional) inputs; DVI optional
• Chassis-mount form factor with VESA compatibility
• Optional resistive, SAW or protection glass touch variants

Product Details
Low Power Consumption
Designed for low power draw and efficient heat dissipation to support continuous operation in production and monitoring environments.

Easy Mounting
Includes universal mounting options for chassis, wall and desk installations; VESA mounting simplifies OEM integration.

Chassis Mount Options
The chassis mount design supports touchscreen options (resistive, SAW) and non-touch protection glass, with multiple sizes and brightness levels available for different use cases.

High Reliability for Industrial Use
Built in a metal enclosure with fanless cooling for reliable operation in factory floors, control rooms and other demanding environments; configurable with optional components for specific installations.

Outstanding Image Quality
Panel and module assembly ensure stable image quality suited to prolonged industrial use and 24/7 monitoring tasks.

Display Ports and Customization
Wide customization options: product size, customer logo, LCD brightness, glass surface treatment, I/O configuration and country-specific power plugs; IO ports and accessories vary by configuration.

Specifications / Technical Data

• Display: Size: 19.0 inches; Resolution: 1280 x 1024; Panel Brightness: 250 nits; Contrast Ratio: 1000:1; View Angles: 85/85/80/80; Display Color: 16.7M; Active Area: 376.32 x 301.06 mm; Touch/Glass: Resistive Touch (Optional); Protection Glass w/o Touch (Optional); SAW Touch (Optional).
• Environment: Operating Humidity: 10% to 90% RH (non-condensing); Operating Temperature: 0°C to 50°C; Storage Temperature: -10°C to 60°C.
• Certification: CE, FCC.
• IO Ports: USB: 1 x USB for touch; Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional).
• Audio: Audio line in (3.5 mm) (optional); 2 x speakers (optional).
• Mechanical: Dimensions: 430 x 355 x 40 mm; Mounting: VESA mount; Enclosure: Metal; Cooling: Fanless design.
• Accessory: Included: 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies). Optional: remote controller (varies).
• Power: Power Rating: 12V DC input (24V DC optional).
• Control: Buttons: 5 keys: -, +, Power, Esc, Enter.
