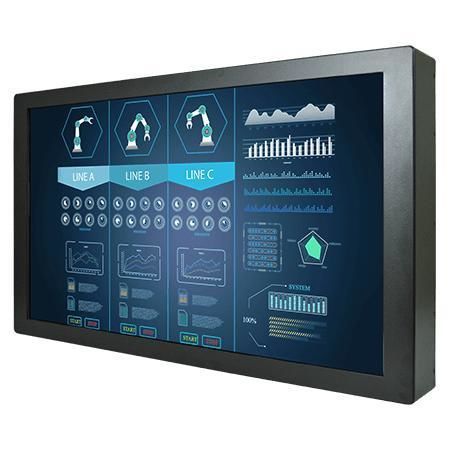

Resistive touch screen monitor W27L100-CHA1

capacitive touch screenindustrialfor displays

Overview
The Winmate W27L100-CHA1 is a 27-inch chassis display designed for industrial visualization, control rooms and equipment monitoring. It targets OEMs and system integrators requiring long lifecycle availability and reliable operation in industrial or mission-critical environments. The unit features a metal enclosure and fanless design for continuous operation.

Key Features

• 27" Full HD (1920 x 1080) chassis display
• VGA input (default); HDMI and DVI optional
• Chassis-mount form factor with VESA compatibility
• Fanless cooling and metal enclosure for industrial use
• Available with resistive or capacitive touch and multiple brightness levels
• Customization options for panel brightness, glass treatment, ports and power plug

Product Details

• Low power consumption and effective heat dissipation for long-term operation in production environments
• Universal mounting options: wall, desk and chassis integration via VESA
• Touchscreen choices (resistive/capacitive) and configurable brightness for indoor/outdoor use
• High reliability with industrial-grade metal housing designed for 24/7 operation
• Full HD panel with wide viewing angles and 16.7M color support for clear visualization
• IO and accessory options: USB for touch, audio in, optional speakers, VGA/HDMI/DVI ports, and country-specific power adapters

Technical specifications

• Display Size: 27.0 inches
• Touch / Glass: Protection Glass
• Resolution: 1920 x 1080
• Panel Brightness: 300 nits
• Contrast Ratio: 3000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 599 x 337 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for touch screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimensions (W x H x D): 660 x 397 x 63 mm
• Mounting: VESA Mount
• Enclosure: Metal
• Cooling System: Fanless design
• Power Rating: 12V DC input (24V DC optional)
• Control Buttons: 5 keys: -, +, Power, Esc, Enter
• Accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional, varies by product)
