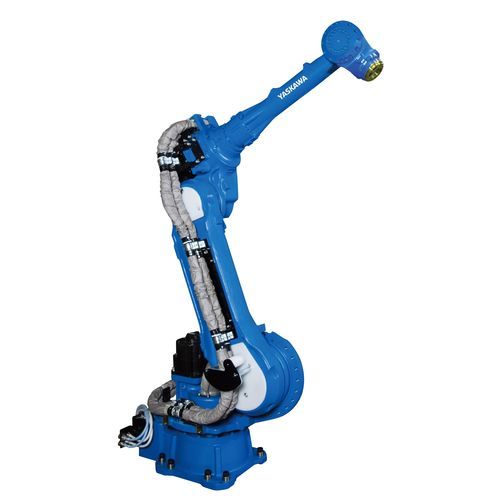

Articulated robot SP80

6-axisspot weldinghandling

Overview The MOTOMAN SP80 is the smallest spot welding and handling robot of the MOTOMAN SP series. It provides 80 kg payload (including C-adapter) and a 2236 mm working range for servo-controlled lightweight welding guns. The robot is suitable for compact spot welding lines in car body construction with high robot density, for economical welding of small subassemblies, and for space-saving installation on a positioner. The MOTOMAN SP80 is controlled by the MOTOMAN YRC1000 controller and uses Yaskawa Sigma-7 servo drive technology to enable high dynamics and efficient cycle times.

Key features

• Extra slim design
• Large working range
• 6 axes
• Compatible with servo-controlled welding guns
• Mounting options: Ceiling, Wall, Floor

Technical details

• Number of axes: 6
• Payload: 80 kg (including C-adapter)
• Max. working range: 2236 mm
• Repeatability: 0.03 mm
• Weight: 630 kg
• Power supply: 4 kVA
• Maximum speeds (°/s): S 170, L 140, U 160, R 230, B 230, T 350
• Mounting options: Ceiling, Wall, Floor
• Controller: MOTOMAN YRC1000
• Servo drive: Yaskawa Sigma-7
