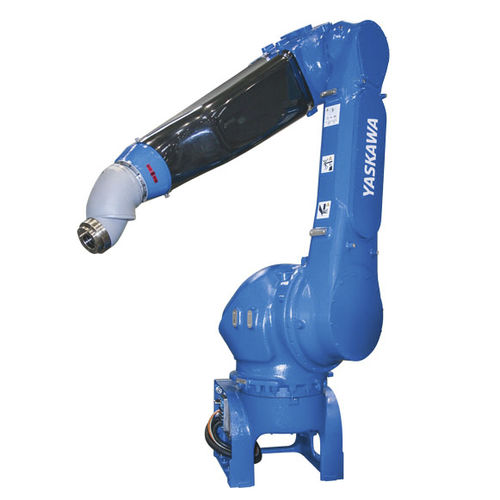

Articulated robot MPX3500

6-axispaintingfloor-mounted

The MOTOMAN MPX3500 (ATEX conformity) is a Painting robot with a reach of 2.700 mm (floor mounted) respective 3.500 mm (wall mounted), designed primarily for Car Body Exterior & Interior Painting in the Automotive Industry. Manipulator Body and process arm provide good mounting space even for large dosing and applicator technology, supporting several paint application technology suppliers. L-Axis and robot base provide different mounting and cable inlet options to place the robot closer to the object, thus minimizing the footprint of the paint booth. Manipulator and Teach Pendant are available for ATEXT Cat 2 or 3 Standards. The MPL3500 offers excellent path performance - smooth and fast motion and quick wrist reorientations. The MOTOMAN Paint Software Package simplifies the programming significantly by providing features like Mirroring (left/right side of the booth), Path Switching functions and recovery after stop or color run out.
