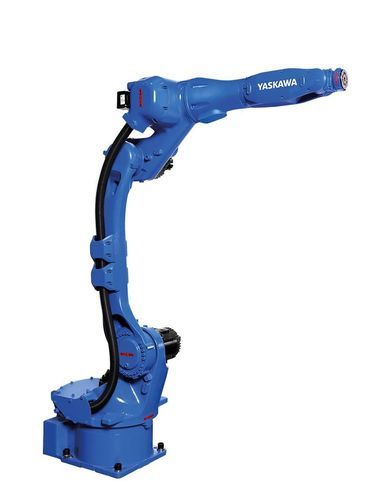

Articulated robot GP8L

6-axisfor assemblypackaging

Overview
The MOTOMAN GP8L is a 6-axis industrial robot designed for general handling and assembly tasks. It provides an 8 kg payload and a long reach of 1,636 mm. Its slim arm and narrow wrist make it suitable for space-constrained installations such as container loading/unloading in packaging and logistics, and for automation around machine tools and injection moulding machines. The GP8L supports multiple functions, interfaces and communication options via Yaskawa controllers (e.g. YRC1000, YRC1000micro) and integrates with modern sensor and vision systems.

Key Characteristics

• 6-axis handling and assembly robot
• Payload: 8 kg
• Maximum reach / working range: 1,636 mm
• Slim design with narrow wrist for tight spaces
• Typical applications: packaging, logistics, machine-tool automation, injection moulding automation
• Compatible with modern sensors and image processing systems
• Mounting options: ceiling, wall, floor

Technical Details (table)

• Number of axes: 6
• Payload: 8 kg
• Max. working range: 1,636 mm
• Repeatability: 0.02 mm
• Weight: 155 kg
• Power supply: 1.5 kVA
• Maximum speed S axis: 260 °/s
• Maximum speed L axis: 230 °/s
• Maximum speed U axis: 260 °/s
• Maximum speed R axis: 470 °/s
• Maximum speed B axis: 550 °/s
• Maximum speed T axis: 1000 °/s
• Mounting options: Ceiling, Wall, Floor

Downloads & CAD
Brochures, datasheets and 2D/3D CAD files are available in the product Downloads section in multiple languages and CAD/CAE formats.
