Articulated robot SIA5F
7-axishandlingfor assembly

articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
7-axis
Function
handling, for assembly, spark optical emission, injection, surface treatment
Mounting
floor-mounted, ceiling-mount, wall-mounted
Payload

5 kg (11.023 lb)

Reach

Min.: 0 mm (0 in)

Max.: 559 mm (22.01 in)

Repeatability

0.6 mm (0.0236 in)

Description

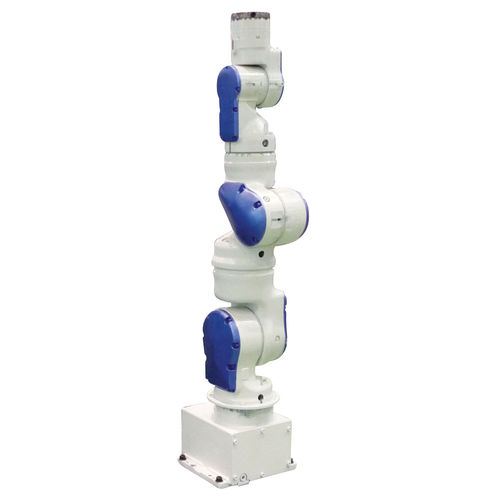

Overview The 7-axis MOTOMAN SIA5F robot has a payload of 5 kg and a reach of 559 mm. This agile, versatile robot opens up a wide range of industrial applications to robots; ideal for assembly, injection molding, quality inspection, machine tending and many special applications like surface treatment. 7-axis actuator-based design and best-in-class wrist performance characteristics provide amazing freedom of movement, coupled with ability to maneuver in very tight areas. A version with high protection class IP65/67 (dust and liquid protected) is available to operate in harsh environments.

VIDEO

Catalogs

Other YASKAWA Europe GmbH products

MOTOMAN Robots
