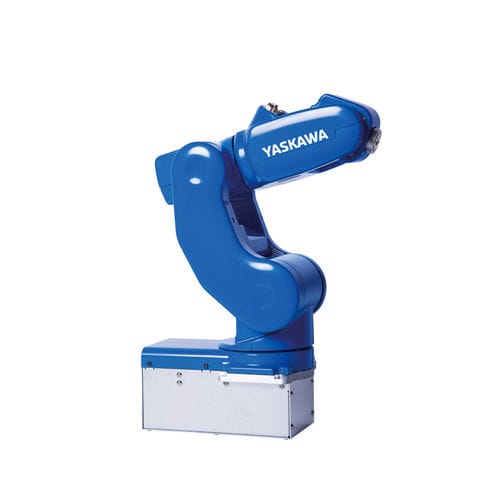

Articulated robot MotoMINI
6-axishandlingcompact

articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
Add to favorites
Compare this product

Characteristics

Type
articulated
Number of axes
6-axis
Function
handling
Other characteristics
compact, for small parts, floor-mounted, ceiling-mount, wall-mounted
Payload

0.5 kg (1.102 lb)

Reach

Max.: 350 mm (13.78 in)

Min.: 0 mm (0 in)

Repeatability

0.02 mm (0.00079 in)

Description

The MotoMINI is a small and fast handling robot expecially designed for handling and assembly of small work pieces. This lightweight robot provides a payload of 500 g an a maximum reach of 350 mm. Technical Details Controlled Axes6 Payload0.5 kg Max Working Range350 mm Repeatability0.02 mm Weight7 kg Power Supply0.5 KVA S Axis315 º/sec L Axis315 º/sec U Axis420 º/sec R Axis600 º/sec B Axis600 º/sec T Axis600 º/sec
