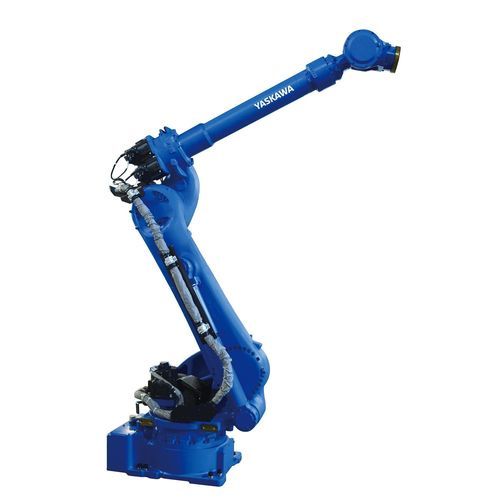

Articulated robot SP165-105

6-axisspot weldinghandling

Overview
The MOTOMAN SP165-105 is a 6-axis spot welding and handling robot with a maximum working range of 3058 mm and a payload capacity of 105 kg. It is designed for workpiece handling in spot welding cells and is compatible with a wide range of spot welding guns, including servo-controlled guns with robot-assisted gun balance.

Design & Control
The SP165-105 features a slim structure without mechanical counterweight compensation, reducing moving masses and allowing higher accelerations and speeds. A reinforced wrist supports frequent small, fast positioning movements typical in spot welding applications. The robot is controlled by the compact MOTOMAN YRC1000 controller and uses Yaskawa Sigma-7 servo drive technology for improved dynamics and energy efficiency.

Key Benefits

• Suitable for spot welding and material handling in welding cells
• Long reach with a small installation footprint
• High dynamics and repeatability (0.05 mm)
• Energy-efficient servo drive system

Technical Details
Axes: 6
Payload: 105 kg
Maximum working range: 3058 mm
Repeatability: 0.05 mm
Weight: 1090 kg
Power supply: 5 kVA
Axis speeds (max): S 125 °/s, L 113 °/s, U 125 °/s, R 182 °/s, B 175 °/s, T 265 °/s
Mounting: Floor-mounted

Applications

• Spot welding operations (including use with servo-controlled welding guns)
• Material and workpiece handling for welding cells

Technical specifications

• Model: SP165-105
• Series: SP Series (spot welding & handling)
• Typical controller: MOTOMAN YRC1000
• Servo technology: Yaskawa Sigma7
