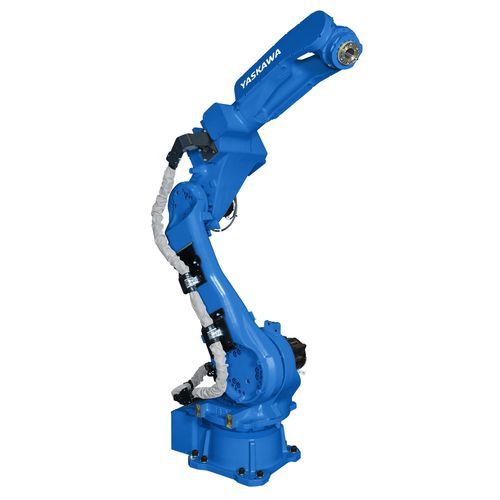

Articulated robot GP35H

6-axisdeburringfor filling applications

Overview
The MOTOMAN GP35H is a high-speed 6-axis industrial robot with a hollow wrist and internal cable routing. It provides a 2070 mm horizontal reach and a 35 kg payload, enabling handling of large grippers and parts over extended work envelopes. Internal cable routing eliminates external interference, allows maximum acceleration and improves performance in vision systems, offline programming and on-site teaching. The high moment of inertia and hollow-wrist design make it suitable for precise medium-payload tasks such as pick & place, machine loading, material handling, assembly, dosing, deburring and grinding.

Key benefits

• Internal cable routing eliminates external interference and cable snagging, enabling maximum acceleration
• High speed with high repeatability (0.07 mm)
• Wrist sealed to IP67 (dust- and liquid-tight)
• Extended horizontal reach (2070 mm) for large parts and grippers

Technical details
Number of axes: 6
Payload: 35 kg
Max. working range: 2070 mm
Repeatability: 0.07 mm
Weight: 545 kg
Power supply: 4 kVA
Maximum speeds: S 180 °/s; L 180 °/s; U 200 °/s; R 350 °/s; B 350 °/s; T 400 °/s
Mounting options: Ceiling, Wall, Floor

Specifications

• Series: GP Series
• Model: GP35H (MOTOMAN GP35H)
• Hollow wrist with internal cable routing
• Payload capacity: 35 kg
• Maximum reach: 2070 mm
• Repeatability: 0.07 mm
• Robot weight: 545 kg
• Power consumption: 4 kVA
• Axes: 6
• Axis max speeds: S 180 °/s; L 180 °/s; U 200 °/s; R 350 °/s; B 350 °/s; T 400 °/s
• Wrist protection: IP67
• Typical applications: pick & place, machine loading, material handling, assembly, dosing, deburring, grinding, vision systems, offline programming and teaching
• Mounting: Ceiling, Wall, Floor
