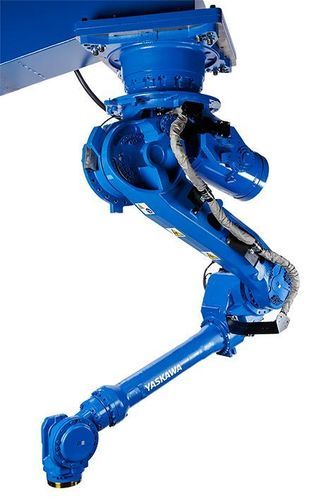

Articulated robot GP215-200T

6-axisspot weldingloading

Overview
The flexible, 6-axis handling robot MOTOMAN GP215-200T is specifically designed for ceiling-mounted applications and provides a high payload of 200 kg with a large reach of 2676 mm. It performs particularly well when mounted elevated on a steel structure, freeing floor space for conveyors, fixtures or processing machines.

Typical applications

• Loading/unloading operations with longer transport distances
• Spot welding applications

Product highlights

• Ceiling-mount-optimised design to free up floor space
• High payload capacity: 200 kg
• Large working reach up to 2676 mm
• High repeatability for precision tasks

Technical data (table)
Number of Axes: 6
Payload: 200 kg
Max. Working Range: 2676 mm
Repeatability: 0.05 mm
Weight: 1360 kg
Power Supply: 5 kVA
Maximum Speed S Axis: 100 °/s
Maximum Speed L Axis: 90 °/s
Maximum Speed U Axis: 97 °/s
Maximum Speed R Axis: 120 °/s
Maximum Speed B Axis: 120 °/s
Maximum Speed T Axis: 190 °/s
Mounting Options: Ceiling

Characteristics / technical specifications

• Model name: GP215-200T
• Series: GP Series
• Axes: 6
• Payload: 200 kg
• Maximum reach / working range: 2676 mm
• Repeatability: 0.05 mm
• Robot weight: 1360 kg
• Power supply requirement: 5 kVA
• Axis maximum speeds: S 100 °/s, L 90 °/s, U 97 °/s, R 120 °/s, B 120 °/s, T 190 °/s
• Recommended mounting: ceiling-mounted applications
