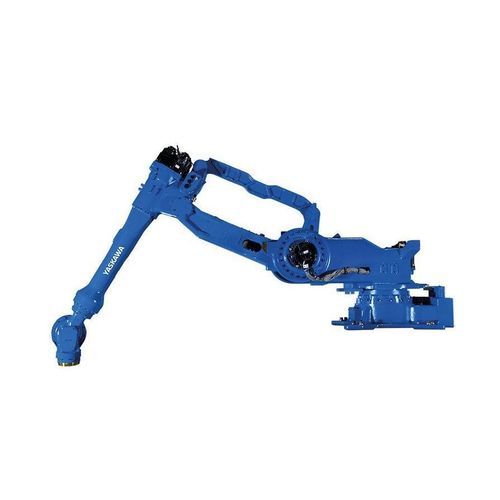

Articulated robot GP300R

6-axisfor weldingspot welding

Overview
The MOTOMAN GP300R is a shelf-mounted 6-axis industrial robot offering a 3220 mm reach, 300 kg rated payload and 0.05 mm repeatability (manufacturer table). Its streamlined upper arm and high-inertia wrist enable access to confined spaces and fast axis acceleration for reduced cycle times.

Typical applications

• Spot welding and heavy welding tooling
• Press transfer and press line integration
• Material handling of large parts
• Machine tending for large CNC and injection-molding machines

Technical details

• Number of axes: 6
• Payload: 300 kg
• Max. working range (reach): 3220 mm
• Repeatability: 0.05 mm
• Weight: 1530 kg
• Power supply: 5 kVA
• Maximum speed S axis: 110 °/s
• Maximum speed L axis: 95 °/s
• Maximum speed U axis: 95 °/s
• Maximum speed R axis: 120 °/s
• Maximum speed B axis: 120 °/s
• Maximum speed T axis: 190 °/s
• Mounting option: Shelf-mounted (console installation)

Key features for buyers

• Shelf-type design extends working range below base level—saves floor space when mounted on elevated structures
• Sigma-7 servo technology compatibility for high dynamic performance
• Suitable for integration with heavy welding guns, multi-grippers and press-transfer fixtures
