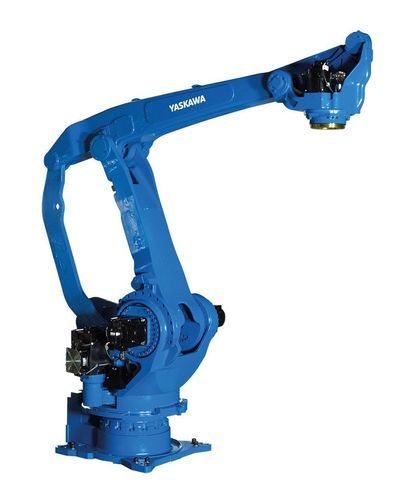

Articulated robot PL190

4-axispalletizingpackaging

Overview
With over 1,700 cycles per hour, the fast and powerful 4-axis MOTOMAN PL190 palletizing robot delivers high throughput for palletizing boxes, cartons and bags in end-of-line packaging and logistics.
The robot's optimized kinematic structure improves stability and increases the maximum payload to 190 kg compared with the previous model.
Its extended working range (maximum reach 3,159 mm) and achievable stacking height above 2,600 mm make it suitable for a wide variety of palletizing layouts and pallet formats.

Key features

• High-speed 4-axis palletizing robot for packaging and logistics
• Up to 1,700 cycles per hour
• Payload: 190 kg
• Maximum reach / working range: 3,159 mm
• Achievable stacking height: > 2,600 mm
• Optimized kinematic design for improved stability and load handling
• Designed for fast, precise palletizing of boxes, cartons and bags

Technical specifications

• Series: PL
• Model: PL190
• Number of axes: 4
• Payload (nominal): 190 kg
• Max. working range (reach): 3,159 mm
• Achievable stacking height: > 2,600 mm
• Repeatability: 0.05 mm
• Weight: 1,680 kg
• Power supply: 9.5 kVA
• Maximum speeds: S 140 °/s, L 145 °/s, U 145 °/s, T 420 °/s
• Mounting: floor
