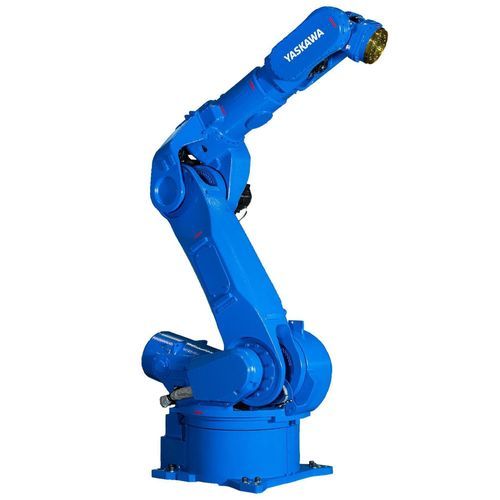

Articulated robot GG250

6-axisfor weldingfloor-mounted

Overview
The MOTOMAN GG250 is a 6-axis welding robot engineered for use with heavy and overhanging welding equipment, particularly for Friction Stir Welding (FSW). It combines increased L-arm diameter and an optimised S-axis design to maintain the rigidity required for precision welding tasks. With a 250 kg payload and a maximum reach of 2711 mm, the GG250 is suited to applications demanding high load capacity and stability.

Key benefits

• Rigid 6-axis structure designed for heavy welding equipment
• High payload: 250 kg; large working range: 2711 mm
• Repeatability: ±0.025 mm (stated)
• Simplified integration, commissioning and maintenance
• Supplied with +SFT instruction for simplified correction of teaching positions
• Protection class options: IP54 / IP65

Technical details (summary)

• Payload: 250 kg
• Max. working range / reach: 2711 mm
• Repeatability (table): 0.03 mm
• Repeatability (stated): ±0.025 mm
• Weight: 1640 kg
• Power supply: 5 kVA
• Maximum speed S axis: 80 °/s
• Maximum speed L axis: 75 °/s
• Maximum speed U axis: 80 °/s
• Maximum speed R axis: 150 °/s
• Maximum speed B axis: 150 °/s
• Maximum speed T axis: 190 °/s
• Mounting options: Floor

Technical specifications

• Number of axes: 6
• Primary application: Friction Stir Welding (for heavy and overhanging welding equipment)
• Protection class: IP54 / IP65
• Weight: 1640 kg
• Power consumption: 5 kVA
• Repeatability details: table 0.03 mm / stated ±0.025 mm
• Mounting: floor installation
