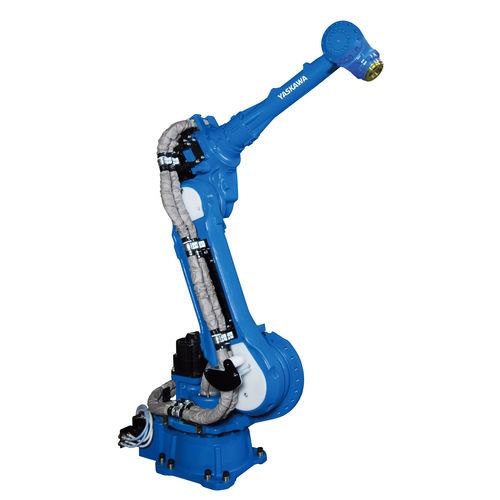

Articulated robot GP88
6-axishandlingdispensing

articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
6-axis
Function
handling, dispensing
Mounting
floor-mounted, ceiling-mount, wall-mounted
Other characteristics
high-speed
Payload

88 kg (194.007 lb)

Reach

Min.: 0 mm (0 in)

Max.: 2,236 mm (88.03 in)

Repeatability

0.03 mm (0.0012 in)

Description

Overview The GP88 is a compact 6-axis industrial robot with 88 kg payload, 2236 mm reach and excellent repeatability of +/- 0.03 mm. Equipped to handle high payloads for heavy part processing, the powerful six-axis GP88 robot increases productivity for a wide selection of tasks. While high moment and inertia ratings support large and heavy applications, exceptionally quick axis speeds and acceleration capabilities reduce cycle time. The compact design enables high-density robot placement in workcells. Pre-wired with sognal and pneumatic lines, the high-speed GP88 offers simple installation, easy operation and minimal maintenance for increased production output. A version with high IP67 (sust and liquid proof) protection class is available for jobs in harsh environments. The GP88 is perfect for a wide range of applications, including machine tending, material handling, material removal, assembly, additive manufacturing, dispensing and grinding/polishing.
