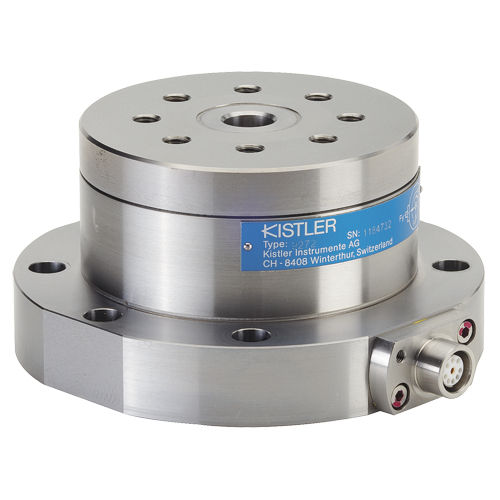

Force and torque sensor 9272

Description
This piezoelectric multicomponent dynamometer measures the three orthogonal force components Fx, Fy and Fz and the torque Mz. The device uses a four-component sensor fitted under high preload between a base plate and a top plate, allowing the components to be measured practically without displacement. The sensor is mounted ground-isolated to minimise ground-loop issues. The unit is rustproof and protected against splash water and cooling agents; with connecting cables Types 1677A5 or 1679A5 it meets protection class IP67.

Main features / advantages

• Compact multicomponent force/torque measuring instrument
• Suitable for cutting-force measurement in drilling operations
• Universal use in industrial force/torque testing

Technical specifications

• Model: 9272
• Sensor type: piezoelectric, four-component
• Measured components: Fx, Fy, Fz (force) and torque Mz
• Maximum torque (variant): Mz ±200 Nm
• Sensor arrangement: four-component sensor under high preload between base and top plate
• Measurement displacement: components measured practically without displacement
• Loading note: combined and eccentric loads may reduce measuring ranges
• Electrical: sensor mounted ground-isolated to largely eliminate ground-loop problems
• Environmental protection: rustproof; protected against splash water and cooling agents
• Ingress protection: with connecting cable Types 1677A5 or 1679A5 corresponds to IP67
• Typical applications: cutting-force measurement (drilling) and general multicomponent force/torque measurement tasks
