1-axis accelerometer 8276A5
uniaxialpiezoelectricshear

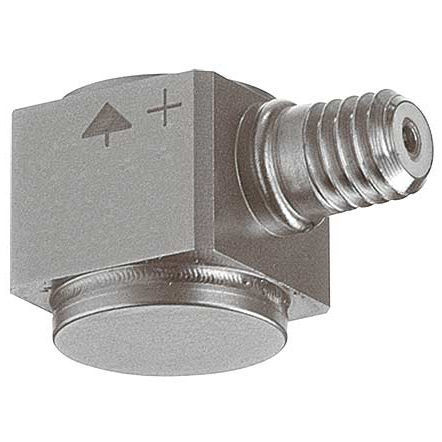

1-axis accelerometer - 8276A5 - KISTLER - uniaxial / piezoelectric / shear
1-axis accelerometer - 8276A5 - KISTLER - uniaxial / piezoelectric / shear
1-axis accelerometer - 8276A5 - KISTLER - uniaxial / piezoelectric / shear - image - 2
Add to favorites
Compare this product

Characteristics

Number of axes
1-axis, uniaxial
Technology
piezoelectric, shear
Other characteristics
G-force, adhesive
Acceleration range

Max.: 19,613 m/s²
(64,348 ft/s²)

Min.: -19,613 m/s²
(-64,348 ft/s²)

Frequency

Max.: 7,000 Hz

Min.: 1 Hz

Description

Product overview
Charge-mode piezoelectric accelerometer model 8276A5 providing uniaxial acceleration measurement up to 2000 g. Adhesive/wax mounting and side 10-32 connector. Sensitivity values indicated on the page: -5.5 pC/g (main features) and 5.5 pC/g (sensitivity for charge output). Designed for dynamic measurements across a wide frequency band. Internal ID: 18006981.

Main features
  • Piezoelectric accelerometer with charge mode output
  • Adhesive / wax mounting
  • Sensitivity: -5.5 pC/g (listed in main features)
  • Side 10-32 connector

Measuring ranges
Maximum measuring range: 2000 g

Product type
Number of Axes: 1 (uniaxial)

Electrical properties
Output signal type: Charge (Piezoelectric, PE)
Electrical isolation: Case isolation

Influence quantities
Sensitivity for charge output: 5.5 pC/g

Dynamical properties
Frequency response (±5%): 1 Hz to 7000 Hz

Operation and installation
Operating temperature range: -55 °C to 165 °C
Mounting type: Adhesive / Wax

Technical specifications
  • Model: 8276A5
  • Internal ID: 18006981
  • Maximum measuring range: 2000 g
  • Number of axes: 1
  • Output: Charge (Piezoelectric, PE)
  • Sensitivity (main features): -5.5 pC/g
  • Sensitivity (technical data): 5.5 pC/g
  • Frequency response: 1 Hz – 7000 Hz (±5%)
  • Electrical isolation: Case isolation
  • Connector: Side 10-32
  • Mounting: Adhesive / Wax
  • Operating temperature range: -55 °C to 165 °C
