3-axis accelerometer 8765A250M5
triaxialIEPEpiezoelectric

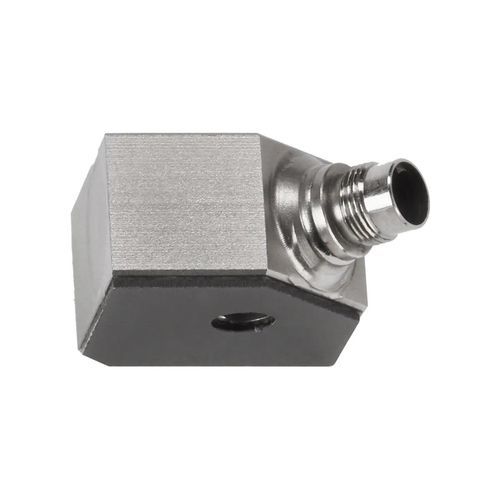

3-axis accelerometer - 8765A250M5 - KISTLER - triaxial / IEPE / piezoelectric
3-axis accelerometer - 8765A250M5 - KISTLER - triaxial / IEPE / piezoelectric
3-axis accelerometer - 8765A250M5 - KISTLER - triaxial / IEPE / piezoelectric - image - 2
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis, triaxial
Technology
IEPE, piezoelectric
Other characteristics
voltage output, miniature, adhesive, high-temperature, G-force, through-hole
Acceleration range

Max.: 2,452 m/s²
(8,044 ft/s²)

Min.: -2,452 m/s²
(-8,044 ft/s²)

Frequency

Max.: 10,000 Hz

Min.: 1 Hz

Description

Overview
Miniature triaxial accelerometer from the PiezoStar family by Kistler, designed for dynamic measurements in elevated temperature environments. Measuring range: 250 g. Through‑hole mounting option available.

Main features
  • Miniature triaxial accelerometer with IEPE (voltage/piezoelectric) output
  • Measuring range: ±250 g
  • Operating temperature range: −55 … 165 °C
  • Center through‑hole mounting; adhesive/wax mounting possible


Technical data (highlights)
  • Model: 8765A250M5
  • Brand: Kistler
  • Maximum measuring range: 250 g
  • Number of axes: 3 (triaxial)
  • Output signal: Voltage (Piezoelectric, IEPE)
  • Sensitivity (Voltage / IEPE): 20 mV/g
  • Frequency response (±5%): 1 Hz – 10,000 Hz
  • Operating temperature (static): approx. −54 / −55 °C to 165 °C
  • Electrical isolation: Ground isolation
  • Mounting: Center through hole; adhesive / wax


Description
The 8765A250M5 is a PiezoStar miniature triaxial accelerometer intended for industrial dynamic measurements where space and elevated temperature resistance are required. It provides IEPE-compatible voltage output with ground isolation and a typical sensitivity of 20 mV/g. The broadband frequency response from 1 Hz up to 10 kHz (±5%) suits a wide range of vibration and shock measurement tasks. Mounting options include center through‑hole installation or adhesive/wax for applications where threaded mounting is not possible.

Downloads & Documentation (listed on product page)
  • Data sheet: PiezoStar accelerometer - Miniature, voltage triaxial accelerometer (English)
  • Data sheet: PiezoStar® Accelerometer - Miniature, Voltage Triaxial Accelerometer (English)
  • Manual: PiezoStar Shear Triaxial IEPE (English)


Technical specifications
  • Model / Commercial designation: 8765A250M5
  • Manufacturer / Brand: Kistler
  • Product ID on page: 18011008
  • Maximum measuring range: 250 g
  • Number of axes: 3 (triaxial)
  • Output signal type: Voltage (Piezoelectric, IEPE)
  • Sensitivity: 20 mV/g
  • Frequency response (±5%): 1 Hz — 10,000 Hz
  • Operating temperature: approx. −54 / −55 °C to 165 °C
  • Mounting: Center through hole; adhesive / wax options
  • Electrical isolation: Ground isolation
