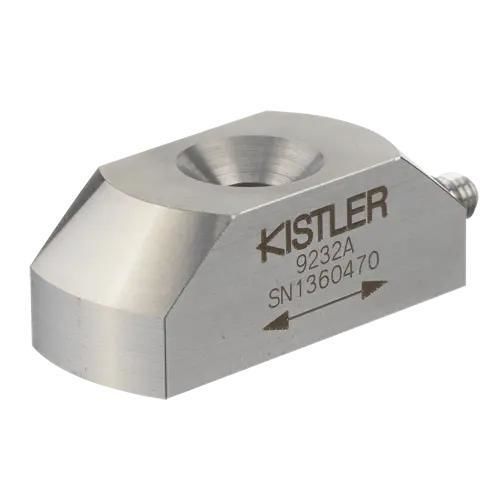

Piezoelectric strain sensor 9232A

Product overview
Piezoelectric surface strain sensor 9232A for highly sensitive surface strain measurements in the range -600 … 600 με. Charge output (piezoelectric) with KIAG 10-32 neg. connector. No cable included.

Main features

• Piezoelectric surface strain sensor
• Measuring range: -600 … 600 με
• Nominal sensitivity: ≈–80 pC/µε
• Output signal: Charge (Piezoelectric, PE)
• Connector: KIAG 10-32 neg.
• Dimensions (L × B × H): 40 × 17 × 15 mm
• Weight: 50 g
• Degree of protection: IP65 (EN 60529)
• Operating temperature: 0 … 70 °C
• Cable: Not included

Technical data

• Measuring range [µε]: -600 … 600 με
• Overload: -900 … 900 µε
• Linearity: ≈≤±2 %FSO
• Sensitivity: ≈–80 pC/µε
• Output signal type: Charge (Piezoelectric)
• Degree of protection (EN 60529): IP65
• Operating temperature range: 0 … 70 °C
• Dimensions (LxBxH): 40 x 17 x 15 mm
• Weight: 50 g

Applications & installation

• High-sensitivity surface strain measurement and structural monitoring
• Process monitoring, laboratory tests and field measurements in industrial environments
• Requires charge amplifier or DAQ input compatible with piezoelectric charge output
• Mount as surface sensor according to installation instructions; suitable for environments requiring IP65 protection

Identifiers

• Model: 9232A
• Internal ID: 18007469
