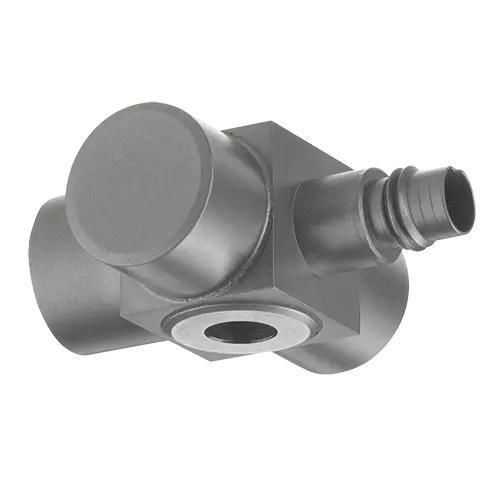

2-axis accelerometer 8838crystalpiezoelectricIEPE
Add to favorites
Compare this product
Characteristics
- Number of axes
- 2-axis
- Technology
- piezoelectric, IEPE, shear, crystal
- Other characteristics
- with built-in electronics, with analog output, voltage output, through-hole, rotational
- Frequency
Max.: 2,000 Hz
Min.: 1 Hz
Description
Overview
Type 8838 is a specialized axial rotational accelerometer designed to measure axial rotational/oscillatory motion. It features an IEPE output, a shear quartz sensing element and a 1/4-28 connector.
Main features
Technical data (selected)
Availability & Price
Characteristics / Technical specifications
Type 8838 is a specialized axial rotational accelerometer designed to measure axial rotational/oscillatory motion. It features an IEPE output, a shear quartz sensing element and a 1/4-28 connector.
Main features
- Designed for axial rotational/oscillatory measurements
- Measuring range: ±150 krad/s2
- Connector: 1/4-28
Technical data (selected)
- Number of axes: 2
- Output signal type: Voltage (Piezoelectric, IEPE)
- Electrical isolation: Case isolation
- Frequency range (±5%): 1 Hz – 2000 Hz
- Operating temperature range: -55 °C – 120 °C
- Mounting type: Center through hole
Availability & Price
- Availability: Upon request
- List price: On request
Characteristics / Technical specifications
- Model: 8838
- Manufacturer: Kistler
- ID: 18007088
- Measuring range: ±150 krad/s2
- Connector: 1/4-28
- Number of axes: 2
- Output signal type: Voltage (Piezoelectric, IEPE)
- Electrical isolation: Case isolation
- Frequency range: 1 Hz – 2000 Hz (±5%)
- Operating temperature range: -55 °C – 120 °C
- Mounting type: Center through hole
- Availability: Upon request
