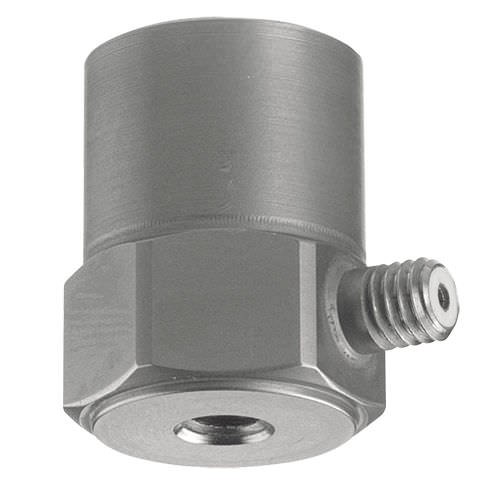

Uniaxial accelerometer 8786A5

shearultra-lighthigh-sensitivity

Product description
Type 8786A are low-impedance, voltage-mode accelerometers designed for vibration measurements in single- to multichannel industrial applications. The ceramic shear sensing element delivers performance commonly required for general-purpose vibration monitoring. Shear sensing ensures high immunity to base strain, thermal transients and transverse accelerations. Other notable attributes include wide frequency response, low mass and hermetic sealing. A rugged side connector maintains reliable integrity under repeated connections.

Main features / advantages

• Low-impedance, voltage-mode output
• Ceramic shear sensing element
• High sensitivity, resolution < 1 mg
• High immunity to base strain, thermal transients and transverse accelerations
• Rugged side connector designed for repeated connections
• Hermetic sealing
• Suitable for single- and multi-channel vibration measurements
• Conforming to CE

Variants

• 8786A5 — Ceramic shear accelerometer, 5 g range, high sensitivity, 10-32 side connector

Technical specifications

• Sensing technology: ceramic shear element
• Output mode: low-impedance, voltage mode
• Sensitivity / resolution: high sensitivity; resolution < 1 mg
• Typical range (example variant): 5 g (8786A5)
• Frequency response: wide / high frequency response (see datasheet for exact range)
• Immunity: high immunity to base strain, thermal transients and transverse accelerations
• Connector: rugged side connector (example: 10-32 on variant)
• Sealing: hermetic sealing
• Weight: low mass
• Compliance: CE
