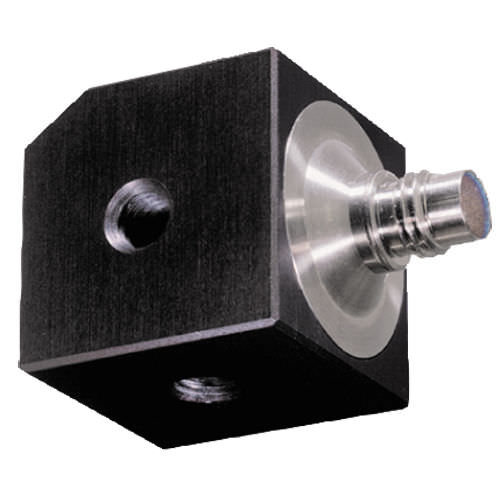

Triaxial accelerometer 8762A10piezoelectricIEPEshear
Add to favorites
Compare this product
Characteristics
- Number of axes
- triaxial
- Technology
- piezoelectric, IEPE, shear
- Other characteristics
- high-sensitivity, G-force, adhesive, with analog output, voltage output, isolated
- Acceleration range
Max.: 98 m/s²
(322 ft/s²)Min.: -98 m/s²
(-322 ft/s²)- Frequency
Max.: 6,000 Hz
Min.: 0.5 Hz
Description
Short description
Triaxial accelerometer model 8762A10 featuring a ceramic shear sensing element, ±10 g measuring range, high sensitivity (500 mV/g) and IEPE (voltage) output. Ground-isolated design for precise dynamic acceleration and vibration measurements in industrial test and monitoring applications.
Main features
Technical data (selected)
Detailed description
The 8762A10 triaxial accelerometer uses a ceramic shear transducer to deliver high sensitivity and stable IEPE voltage output across three axes. The ground-isolated construction reduces electrical interference when installed on equipment with varying reference potentials. Specified frequency range and low-frequency response make this sensor suitable for vibration monitoring, modal analysis, structural testing and rotating machinery diagnostics. Flexible mounting options (threaded stud, adhesive/wax, magnetic base) allow installation on different surfaces and test configurations. The sensor operates reliably from -54 °C to 80 °C.
Downloads
Datasheet and user manuals (PDF) available for download on the product page.
Characteristics / specifications
Triaxial accelerometer model 8762A10 featuring a ceramic shear sensing element, ±10 g measuring range, high sensitivity (500 mV/g) and IEPE (voltage) output. Ground-isolated design for precise dynamic acceleration and vibration measurements in industrial test and monitoring applications.
Main features
- Ceramic shear sensing element with IEPE voltage output
- Measuring range: ±10 g
- High sensitivity: 500 mV/g
- Ground-isolated electrical design
- Triaxial measurement (3 axes)
- Multiple mounting options: threaded stud, adhesive/wax, magnetic base
Technical data (selected)
- Model: 8762A10
- Product ID: 18010995
- Maximum measuring range: 10 g (±10 g)
- Number of axes: 3
- Output signal type: Voltage (Piezoelectric, IEPE)
- Electrical isolation: Ground-isolated
- Sensitivity: 500 mV/g
- Frequency response (±5%): 0.5 Hz – 6000 Hz
- Operating temperature: -54 °C to 80 °C
- Mounting types: Threaded hole / Stud, Adhesive / Wax, Magnetic base
Detailed description
The 8762A10 triaxial accelerometer uses a ceramic shear transducer to deliver high sensitivity and stable IEPE voltage output across three axes. The ground-isolated construction reduces electrical interference when installed on equipment with varying reference potentials. Specified frequency range and low-frequency response make this sensor suitable for vibration monitoring, modal analysis, structural testing and rotating machinery diagnostics. Flexible mounting options (threaded stud, adhesive/wax, magnetic base) allow installation on different surfaces and test configurations. The sensor operates reliably from -54 °C to 80 °C.
Downloads
Datasheet and user manuals (PDF) available for download on the product page.
Characteristics / specifications
- Model: 8762A10
- Product ID: 18010995
- Type: Triaxial ceramic shear accelerometer
- Range: ±10 g
- Sensitivity: 500 mV/g
- Output: IEPE (voltage, piezoelectric)
- Axes: 3
- Frequency response: 0.5 Hz – 6000 Hz (±5%)
- Electrical isolation: Ground-isolated
- Operating temperature: -54 °C to 80 °C
- Mounting options: Threaded hole / Stud, Adhesive / Wax, Magnetic base
