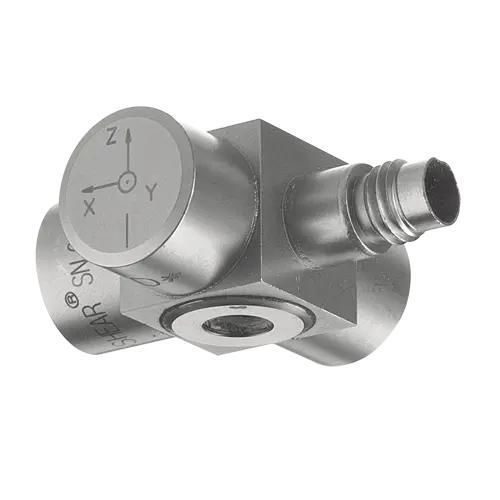

3-axis accelerometer 8792A100triaxialpiezoelectricIEPE
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, triaxial
- Technology
- piezoelectric, IEPE, shear
- Other characteristics
- G-force, with analog output, voltage output, through-hole
- Acceleration range
Max.: 981 m/s²
(3,219 ft/s²)Min.: -981 m/s²
(-3,219 ft/s²)- Frequency
Max.: 5,000 Hz
Min.: 0.5 Hz
Description
Description
Triaxial accelerometer designed for dynamic vibration measurement with a 100 g measuring range and center through-hole mounting, compatible with IEPE systems.
Main features
Technical data
Specifications
Triaxial accelerometer designed for dynamic vibration measurement with a 100 g measuring range and center through-hole mounting, compatible with IEPE systems.
Main features
- IEPE voltage output (piezoelectric)
- Measuring range: 100 g
- Triaxial measurement (3 axes)
- Center through-hole mounting
- Sensitivity: 50 mV/g
Technical data
- Maximum measuring range: 100 g
- Number of axes: 3
- Output signal type: Voltage (Piezoelectric, IEPE)
- Electrical isolation: Case isolation
- Sensitivity (Voltage/IEPE): 50 mV/g
- Frequency range (±5%): 0.5 Hz to 5000 Hz
- Operating temperature: -54 °C to 100 °C
- Mounting type: Center through hole
Specifications
- Model: 8792A100
- Internal ID: 18007075
- Availability: On request
