1-axis accelerometer 8076K
crystalpiezoelectricG-force

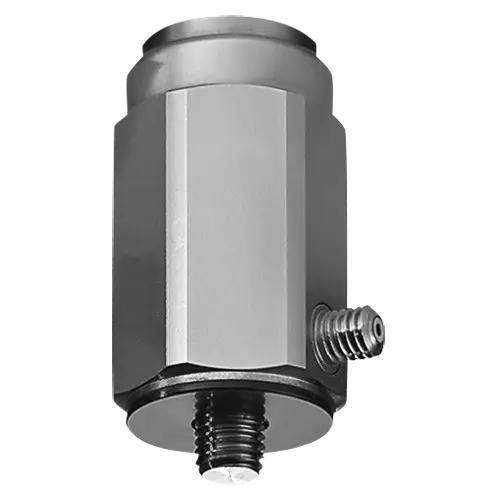

1-axis accelerometer - 8076K - KISTLER - crystal / piezoelectric / G-force
1-axis accelerometer - 8076K - KISTLER - crystal / piezoelectric / G-force
1-axis accelerometer - 8076K - KISTLER - crystal / piezoelectric / G-force - image - 2
Add to favorites
Compare this product

Characteristics

Number of axes
1-axis
Technology
piezoelectric, crystal
Other characteristics
G-force, high-frequency, through-hole, for calibration
Acceleration range

Max.: 9,807 m/s²
(32,175 ft/s²)

Min.: -9,807 m/s²
(-32,175 ft/s²)

Frequency

Max.: 5,000 Hz

Min.: 0.5 Hz

Description

Product overview
Charge-mode vibration standard for accelerometers designed for 1/4-28 mounting. Measuring range 1000 g, charge (piezoelectric) output and 10-32 connector; suitable as a reference for calibration and dynamic testing.

Main features
  • Quartz vibration standard for 1/4-28 mounted accelerometers
  • Quartz accuracy and stability
  • Measuring range: 1000 g
  • 10-32 connector and threaded mounting


Technical data
  • Maximum measuring range [g]: 1000 g
  • Number of axes: 1
  • Output signal type: Charge (Piezoelectric, PE)
  • Electrical isolation: Case isolation
  • Sensitivity for charge output: 1 pC/g
  • Frequency range (±5%): 0.5 Hz - 5000 Hz
  • Operating temperature: -20 °C to 65 °C
  • Mounting type: 1/4-28 threaded hole / stud


Availability & Pricing
  • Availability: On request
  • List price: On request


Characteristics / technical specifications
  • Model: 8076K
  • Product ID: 18006956
  • Brand: Kistler
  • Measuring range: 1000 g
  • Output: Charge (Piezoelectric, PE)
  • Sensitivity: 1 pC/g
  • Axes: 1
  • Frequency range: 0.5 Hz - 5000 Hz (±5%)
  • Operating temperature: -20 °C to 65 °C
  • Mounting: 1/4-28 mounting; threaded hole / stud; 10-32 connector
  • Electrical isolation: Case isolation
