Mechanical dynamometer 9257B

IP67for load measurement

Product overview

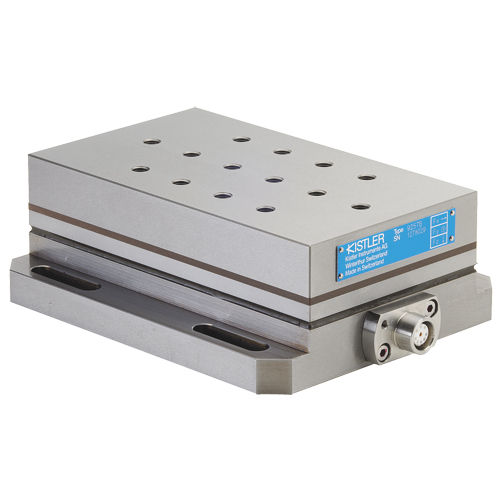

These piezoelectric multicomponent dynamometers measure the three orthogonal force components Fx, Fy and Fz using four built-in three-component sensors arranged between a baseplate and a top cover plate.

Main features / advantages

• Measures three orthogonal force components and associated moments
• Ground-insulated sensor mounting to minimise ground-loop issues
• Corrosion-resistant and splash-protected; meets IP67 with specified cables

Detailed description
The unit contains four three-component sensors, each with three pairs of quartz plates (one pair for normal pressure in z, two pairs for shear in x and y). Sensors are preloaded between the baseplate and top plate so force components are measured practically without displacement. The outputs of the four sensors are combined internally to provide multicomponent force and moment measurement. Eight output signals are available at a 9-conductor flange socket. A special thermal isolation coating integrated in the top plate reduces sensitivity to temperature variations. With connecting cables Type 1687B5 or 1689B5 and Type 1677A5 or 1679A5 the assembly corresponds to protection class IP67.

Variants

• 9257B — Multicomponent dynamometer, 5 kN variant with cover plate 100 x 170 mm — Price: on request — Availability: on request

Technical specifications

• Model: 9257B
• Type: Piezoelectric multicomponent dynamometer
• Maximum forces: up to 10 kN (product family)
• Example variant: 9257B — 5 kN, cover plate 100 x 170 mm
• Cover plate dimensions: 100 x 170 mm
• Measured components: Fx, Fy, Fz (three orthogonal force components)
• Sensor configuration: four three-component sensors fitted under high preload between baseplate and top plate
• Sensor element: three pairs of quartz plates per sensor (pressure/z and shear/x,y)
• Outputs: eight output signals available at a 9-conductor flange socket
• Grounding: sensors mounted ground-insulated to largely eliminate ground-loop problems
• Protection: rustproof and protected against splash water and cooling agents; IP67 with specified connecting cables
• Thermal behaviour: thermal isolation coating in top plate reduces sensitivity to temperature influences
• Measurement characteristic: force components measured practically without displacement
• Typical application: cutting force measurements and other multicomponent force/moment measurements
