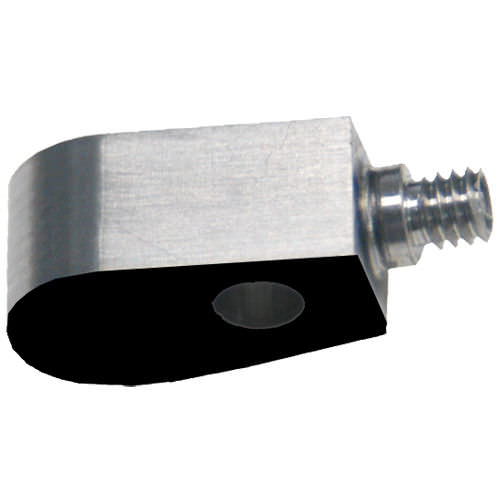

1-axis accelerometer 8715A5000M5

uniaxialpiezoelectricIEPE

Short description
Single-axis, lightweight accelerometer with center through-hole mounting, designed for high-shock NVH applications and elevated operating temperatures up to +165 °C.

Main features

• High-shock accelerometer with IEPE (voltage) output
• Acceleration range: ±5000 g
• Operating temperature range: –55 … +165 °C
• Center through-hole mounting; adhesive/wax mounting supported

Measuring ranges

• Maximum measuring range [g]: 5000 g

Product type

• Device type: Accelerometer (single-axis)
• Number of axes: 1
• Technology: Ceramic shear element
• Miniaturized design: Yes

Metrological characteristics

• Threshold (acceleration): 0.04 g RMS
• Thermal stability: Yes

Electrical properties

• Output signal type: Voltage (Piezoelectric, IEPE compatible)
• Electrical isolation: Ground isolation
• Ground insulation: Yes

Influence quantities

• Sensitivity (Voltage/IEPE): 1 mV/g
• Temperature coefficient of sensitivity: -0.01 %/°C

Dynamical properties

• Minimum frequency (±5%): 2 Hz
• Maximum frequency (±5%): 10 000 Hz

Operation and installation

• Minimal operating temperature: -54 °C
• Maximum operating temperature: 165 °C
• Mounting: Center through hole (primary); adhesive / wax option
• Sealing: Hermetic
• High-shock capability: Yes
• High-temperature capability: Yes
• Typical applications: NVH testing, engine and powertrain measurements

Interfaces

• Connector type: Side, 5-44 negative

Characteristics / technical specifications

• Model: 8715A5000M5
• Brand: Kistler
• Range: ±5000 g
• Sensitivity: 1 mV/g (Voltage / IEPE)
• Threshold (acceleration): 0.04 g RMS
• Frequency range: 2 Hz – 10 000 Hz (±5%)
• Temperature coefficient of sensitivity: -0.01 %/°C
• Operating temperature: approx. -54 °C to +165 °C
• Mounting methods: Center through hole; adhesive / wax
• Sealing: Hermetic
• Connector: Side, 5-44 negative
• Intended use: High-shock and high-temperature NVH testing
