Reaction torque sensor 9329A

High precisewith flange connectionflange-to-flange

Description

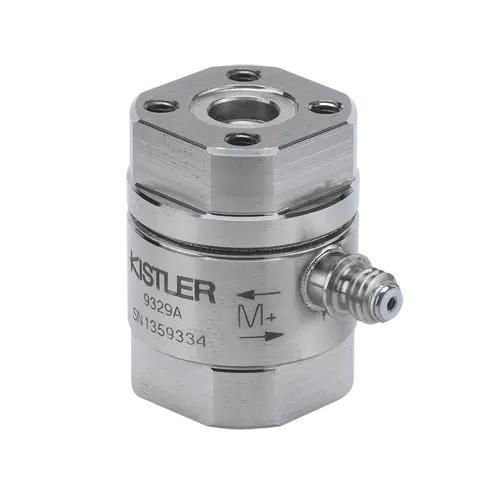

This easy-to-install piezoelectric reaction torque sensor is designed for measuring rapidly changing torques on non-rotating shafts. Measuring range: ±1 N·m. The sensor element is preloaded between a preload screw and nut; when torque is applied, shear stresses are transmitted to the piezo crystals and produce a charge signal. The charge is picked up by an electrode and conducted via a screened cable to a charge amplifier, which converts it into a proportional output voltage for recording and evaluation. Flanges on the top and bottom enable direct, low-profile installation on a shaft or adapter flange. Alternatively, a mounting flange (optional) or custom adapters can be used. Two-sided centering ensures accurate coaxial fit; a centric bore enables additional uses such as shaft bushings. A screw-on connector cover ferrule is supplied to protect the side cable connection. This Kistler reaction torque sensor reliably detects very small torques around the sensor axis in both rotation directions.

Main features

• Preloaded and precalibrated torque link, ready to measure
• Compact, low-profile flange design
• Dimensions: Ø x H 20 x 26 mm
• Connector: 10-32 UNF, screw-on connector cover ferrule included
• Sensitivity: -2170 pC/Nm (-2942 pC/ftlb)

Technical data (excerpt)

• Maximum measuring range: 1 N·m
• Measuring range: -1 … 1 N·m (±1 N·m)
• Rotating / Non-rotating: Non-rotating (0 rpm)
• Linearity incl. hysteresis: 0.2 %FSO
• Accuracy class (strain gauge): 0.2
• Output signal type: Charge (Piezoelectric, PE)
• Degree of protection (EN 60529): IP68
• Sensor design: Flange type, two-sided centering, centric bore option
• Typical applications: eVTOL / UAV / drone testing, space payload testing

Technical specifications

• Model: 9329A
• Product ID: 18007673
• Measuring range: ±1 N·m
• Dimensions (DxH): 20 x 26 mm
• Connector: 10-32 UNF
• Sensitivity: -2170 pC/Nm (-2942 pC/ftlb)
• Output: Charge (Piezoelectric)
• Linearity (incl. hysteresis): 0.2 %FSO
• Accuracy class: 0.2
• Protection class: IP68
