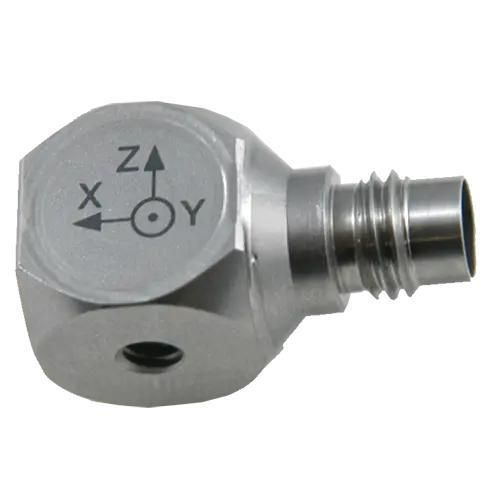

Triaxial accelerometer 8766A250ABpiezoelectricIEPEminiature
Add to favorites
Compare this product
Characteristics
- Number of axes
- triaxial
- Technology
- piezoelectric, IEPE
- Other characteristics
- miniature, for automotive applications, with analog output, voltage output
- Acceleration range
Max.: 2,452 m/s²
(8,045 ft/s²)Min.: -2,452 m/s²
(-8,045 ft/s²)- Frequency
Max.: 10,000 Hz
Min.: 0.8 Hz
Description
Product overview
This miniature IEPE triaxial accelerometer from the PiezoStar family is engineered for high-precision NVH testing on combustion engines and powertrains. It offers a ±250 g measurement range, M4.5 4-pin connector and IEPE (voltage, piezoelectric) output with typical sensitivity of 20 mV/g and case isolation.
Main features
Applications
Additional product information
Technical specifications
This miniature IEPE triaxial accelerometer from the PiezoStar family is engineered for high-precision NVH testing on combustion engines and powertrains. It offers a ±250 g measurement range, M4.5 4-pin connector and IEPE (voltage, piezoelectric) output with typical sensitivity of 20 mV/g and case isolation.
Main features
- PiezoStar triaxial accelerometer with IEPE output
- Acceleration range: ±250 g
- Connector: M4.5, 4-pin
- Number of axes: 3 (triaxial)
- Sensitivity (typical): 20 mV/g
Applications
- NVH testing on engines and powertrains
- Component and 3C electronics manufacturing tests
Additional product information
- Model / reference shown on page: 8766A250AB
- Product ID: 18042536
- Availability: On request
- List price: On request
- Brand: Kistler
Technical specifications
- Maximum measuring range: ±250 g
- Number of axes: 3
- Output signal type: Voltage (Piezoelectric, IEPE)
- Electrical isolation: Case isolation
- Sensitivity (Voltage / IEPE): 20 mV/g
- Minimum frequency (±5%): 0.8 Hz
- Maximum frequency (±5%): 10,000 Hz
- Operating temperature range: -54 °C to 120 °C
- Mounting options: Threaded hole / stud, adhesive / wax, magnetic base
