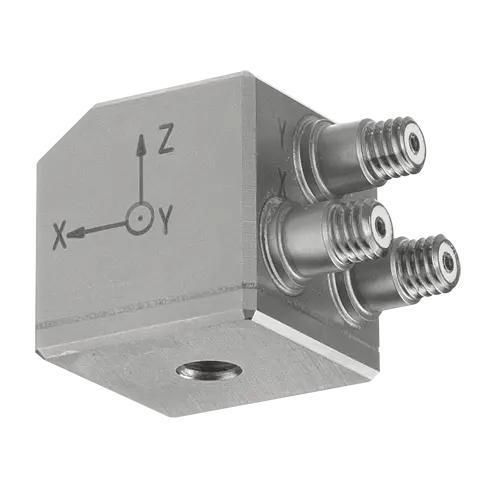

Triaxial accelerometer 8290A25M5

piezoelectricshearG-force

Description
Triaxial charge mode piezoelectric accelerometer, model 8290A25M5, rated 1000 g in the product designation and specified for high-temperature operation (page lists values up to 246 °C / technical data up to 250 °C). Designed for industrial high-temperature vibration measurement.

Main features

• High-impedance piezoelectric accelerometer with charge-mode output
• Temperature range on page: -70 … 246 °C
• Sensitivity (page main features): -25 pC/g
• Connector: 3 x 10-32 neg. (side)

Technical data
Measuring ranges

• Maximum measuring range [g]: 2000 g

Product type

• Number of Axes: 3

Electrical properties

• Output signal type: Charge (Piezoelectric, PE)
• Electrical isolation: Case isolation

Influence quantities

• Sensitivity for charge output: 25 pC/g (technical data)

Dynamical properties

• Minimum frequency (±5%) [Hz]: 5 Hz
• Maximum frequency (±5%) [Hz]: 4000 Hz

Operation and installation

• Minimal operating temperature [°C]: -70 °C
• Maximum operating temperature [°C]: 250 °C (technical data) / 246 °C (page)
• Mounting type: Hole / screw

Notes and observed values

• Model designation on page: 8290A25M5
• Product ID on page: 18006982
• Availability: Upon request
• List price: On request
• H1/description indicates a 1000 g range and operating temperature up to 246 °C while technical data show a maximum measuring range of 2000 g and a maximum operating temperature of 250 °C — both values are included here as listed on the page
• Sensitivity appears as -25 pC/g in the main features and as 25 pC/g in the technical data (both entries are retained as provided)

Characteristics / technical specifications

• Model: 8290A25M5
• Manufacturer / Brand: Kistler
• Product ID: 18006982
• Product type: Triaxial piezoelectric accelerometer, charge mode, ceramic shear
• Number of axes: 3
• Rated range on product page: 1000 g
• Maximum measuring range (technical data): 2000 g
• Sensitivity (main features): -25 pC/g
• Sensitivity (technical data): 25 pC/g
• Output signal type: Charge (Piezoelectric, PE)
• Electrical isolation: Case isolation
• Connector: 3 x 10-32 neg. (side)
• Frequency range: 5 Hz – 4000 Hz (±5%)
• Operating temperature (min): -70 °C
• Operating temperature (max): 246 °C (page) / 250 °C (technical data)
• Mounting type: Hole / screw
• Availability: Upon request
• Price: On request
