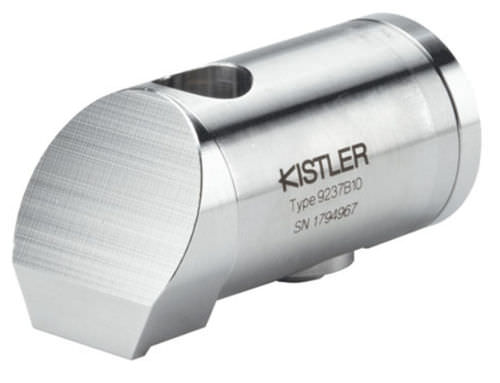

Piezoelectric strain sensor 9237B10

for dynamic applications

Overview
Piezoelectric surface strain sensor model 9237B10 designed for industrial surface strain measurement and process monitoring, standard version.

Main features

• Measuring range: -800 … 800 με
• Nominal sensitivity: -34 pC/με
• Dimensions (L×W×H): 62.25 × 25 × 26.7 mm
• Output signal: Charge (piezoelectric)
• Output connector: KIAG 10-32 neg.
• Degree of protection: IP65 (EN 60529)
• Operating temperature: -30 … 120 °C

Technical data (key attributes)

• Calibrated measuring range: 0 … 500 με
• Mechanical overload: ±1000 με
• Linearity: ≤±2 %FSO
• Weight: ≈160 g
• Cable: Not included

Installation and application

• Typical application: Spot welding process monitoring and industrial strain monitoring
• Requires charge amplifier or dedicated signal conditioning for measurement acquisition
• Mounting: use appropriate adhesive or mounting accessories and ensure correct surface preparation for accurate readings

Model / ordering information

• Model: 9237B10
• Product ID: 18007487
