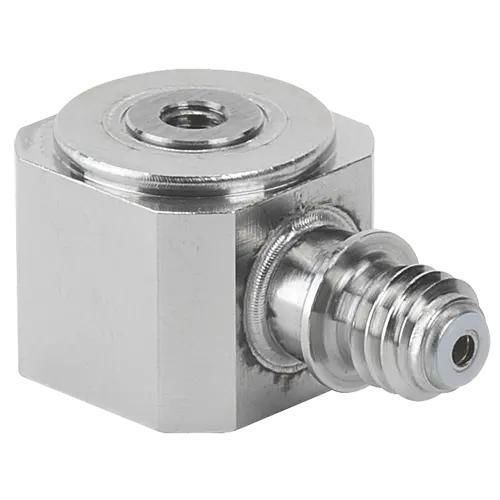

Compression load cell 9313AA1

beam typesingle-axispiezoelectric

Product overview
This miniature piezoelectric compression force sensor (model 9313AA1) is designed for dynamic and quasistatic force measurement in compact industrial installations. The sensor is preloaded and supplied with practical mounting adaptation options for immediate integration. Its piezoelectric charge output requires a measuring amplifier or charge converter for conversion to a process signal. The square sensor body and axial threaded bores at both ends enable flexible axial force introduction and simplify special mounting situations. Tensile forces up to 10% of the compression range can be measured (not calibrated) and are typically used to detect tool withdrawal forces after press-fitting.

Main features

• Preloaded, calibrated force transducer ready for immediate use
• Calibrated Fz ranges: 0 … 0.05 kN; 0 … 0.5 kN; 0 … 5 kN
• Sensitivity: ≈ −10 pC/N
• Compact dimensions DxH: 13 x 10 mm; weight: 10 g (without cable)

Description
The 9313AA1 is optimised for installation where space is limited and dynamic or quasistatic force signals must be acquired. Charge output requires a downstream measuring amplifier or charge converter to produce a stable process signal. Axial force can be introduced from either end; the square housing and axial threaded bores facilitate secure fixing and adaptation to fixtures.

Applications

• Semiconductor manufacturing
• 3C electronics assembly and testing (compact electronic assemblies)

Technical data (selected)

• Measuring ranges: minimum 0 kN — maximum 5 kN
• Calibrated Fz range examples: 0 … 0.05 kN; 0 … 0.5 kN; 0 … 5 kN
• Output signal type: Charge (piezoelectric)
• Sensitivity: ≈ −10 pC/N
• Linearity: ≤ ±0.5 %FSO
• Threshold: 0.01 N
• Operating temperature range: −40 … 120 °C
• Degree of protection: IP67 (EN 60529)
• Connector: KIAG 10-32 neg.; cable not included
• Casing material: DIN 1.4542

Mechanical properties

• Stiffness Cz: 0.56 kN/μm
• Maximum overload (tension/pressure): −0.5 / 5.5 kN
• Maximum tightening torque Mz: 0.3 N·m
• Maximum bending moment Mxy (single load): 1.3 N·m
• Shear force: 0.1 kN

How it works
The piezoelectric crystal inside the sensor generates an electric charge proportional to the applied axial force. A measuring amplifier or charge converter downstream converts this charge into an evaluable process signal compatible with test or production equipment.

caractéristiques / spécifications techniques

• Model: 9313AA1
• Calibrated Fz ranges: 0 … 0.05 kN; 0 … 0.5 kN; 0 … 5 kN
• Maximum measuring range: 5 kN
• Sensitivity: ≈ −10 pC/N
• Linearity: ≤ ±0.5 %FSO
• Threshold: 0.01 N
• Temperature coefficient of sensitivity: 0.05 %/°C
• Protection degree: IP67
• Weight (without cable): 10 g
• Casing material: DIN 1.4542
