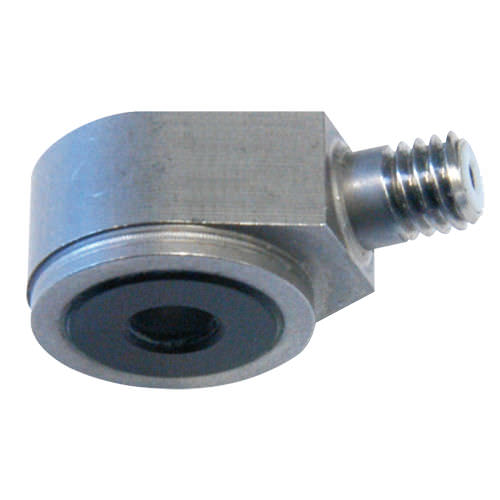

1-axis accelerometer 8714B100TuniaxialpiezoelectricIEPE
Add to favorites
Compare this product
Characteristics
- Number of axes
- 1-axis, uniaxial
- Technology
- piezoelectric, IEPE, shear
- Other characteristics
- with TEDS, voltage output, through-hole
- Acceleration range
Max.: 981 m/s²
(3,219 ft/s²)Min.: -981 m/s²
(-3,219 ft/s²)- Frequency
Max.: 10,000 Hz
Min.: 1 Hz
Description
Overview
This through‑hole mounted ceramic shear accelerometer offers a 100 g measuring range, IEPE voltage output and integrated TEDS for sensor identification and configuration.
Main features
Measuring ranges
Product type
Electrical properties
Influence quantities
Dynamical properties
Operation and installation
Technical specifications
This through‑hole mounted ceramic shear accelerometer offers a 100 g measuring range, IEPE voltage output and integrated TEDS for sensor identification and configuration.
Main features
- IEPE output (voltage, piezoelectric)
- Measuring range: 100 g
- TEDS included
- Center through‑hole mounting
Measuring ranges
- Maximum measuring range: 100 g
Product type
- Number of axes: 1 (uniaxial)
Electrical properties
- Output signal type: Voltage (piezoelectric, IEPE)
- Electrical isolation: Case isolation
Influence quantities
- Sensitivity: 50 mV/g
Dynamical properties
- Minimum frequency (±5%): 1 Hz
- Maximum frequency (±5%): 10000 Hz
Operation and installation
- Operating temperature: -55 °C to 165 °C
- Mounting type: Center through hole
Technical specifications
- Model: 8714B100T
- Product ID: 18010986
- Measuring range: 100 g
- Output: IEPE (voltage, piezoelectric)
- Sensitivity: 50 mV/g
- Axes: 1 (uniaxial)
- Frequency range: 1 Hz – 10000 Hz (±5%)
- Operating temperature: -55 °C to 165 °C
- Mounting: Center through hole
- TEDS: Included
