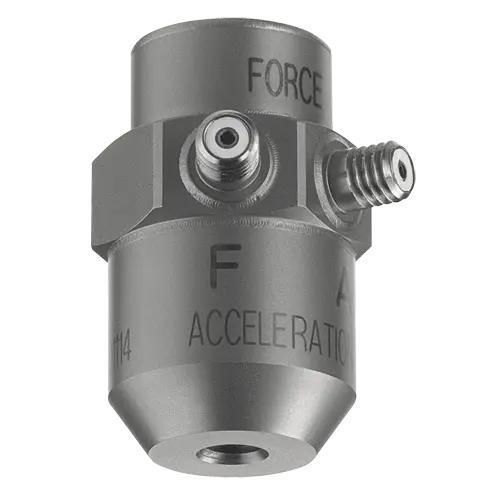

Impedance head 8770A5

Short description
Impedance head with IEPE output designed for dynamic measurements and modal analysis. Measuring range: 5 g; Force range: 22 N; 2 axes and 2 x 10-32 connectors.

Main features

• IEPE output for direct connection to data acquisition systems
• Measuring range: 5 g
• Force range: 22 N
• 2 axes, 2 x 10-32 connectors

Technical data (selected)

• Maximum measuring range [g]: 5 g
• Number of Axes: 2
• Output signal type: Voltage (Piezoelectric, IEPE)
• Electrical isolation: Ground isolation
• Sensitivity (Voltage and IEPE Output): 1000 mV/g
• Frequency range (±5%): 1 Hz – 4000 Hz
• Operating temperature range: -54 °C to 80 °C
• Mounting: Threaded hole / Stud

Model / Product information

• Model: 8770A5
• Product ID: 18007059
