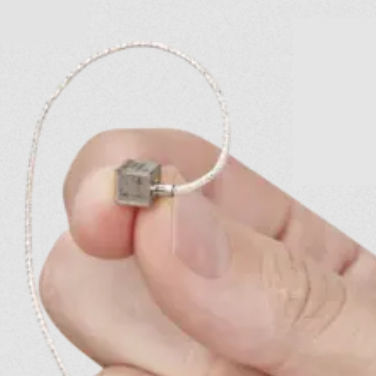

Triaxial accelerometer 8011A series

crystalpiezoelectricIEPE

Product summary
The Type 8011A product family comprises miniature triaxial IEPE accelerometers (KiVibe Miniature) designed to measure vibration on three orthogonal axes with a mass of approx. 0.9 g and a compact 6 mm cube form factor.

Main features / advantages

• Introduction list price for 2026
• Low mass: approx. 0.9 g; size: 6 mm cube
• Measurement ranges: 100 g, 250 g, 500 g, 1000 g
• Frequency bandwidth: 0.3 – 8000 Hz (±5%)
• Minimal thermal sensitivity shift thanks to PiezoStar crystal (Kistler)
• Low-noise electronics and case isolation for improved immunity to electromagnetic interference
• Welded titanium housing, integrated cable with patented attachment, standard four-pin industrial connector (1/4-28 UNF pos.), TEDS included; manufactured in Switzerland

Description
KiVibe Miniature triaxial IEPE accelerometers (Type 8011A) are intended for structural testing where space and mass are constrained, e.g., satellites, printed circuit boards and compact components. The integrated PiezoStar sensor element minimizes thermal sensitivity drift and, combined with low-noise signal conditioning, enables a wide usable frequency range. Case isolation reduces noise in environments with high electromagnetic interference (for example electric motors). The welded titanium housing provides a robust yet lightweight enclosure. The integrated cable is secured to the sensor using a patented attachment to ensure mechanical reliability and ease of handling during demanding installations. The cable terminates with a standard four-pin industrial connector (1/4-28 UNF pos.) and the sensor supports TEDS for electronic identification.

Variants

• 8011A100 — KiVibe Miniature triaxial IEPE accelerometer, PiezoStar crystal, 100 g
• 8011A250 — KiVibe Miniature triaxial IEPE accelerometer, PiezoStar crystal, 250 g
• 8011A500 — KiVibe Miniature triaxial IEPE accelerometer, PiezoStar crystal, 500 g
• 8011A1K0 — KiVibe Miniature triaxial IEPE accelerometer, PiezoStar crystal, 1000 g
• Z22198E500A — KiVibe Miniature triaxial IEPE accelerometer with TEDS, PiezoStar crystal, 500 g
• Z22198E1K0A — KiVibe Miniature triaxial IEPE accelerometer with TEDS, PiezoStar crystal, 1000 g

Technical specifications

• Model: 8011A
• Product family: KiVibe Miniature triaxial IEPE accelerometers (Type 8011A)
• Sensor element: PiezoStar crystal (Kistler)
• Mass: approx. 0.9 g
• Size: approx. 6 mm cube
• Measurement ranges: 100 g, 250 g, 500 g, 1000 g
• Frequency bandwidth: 0.3 – 8000 Hz (±5%)
• Thermal sensitivity shift: minimal (PiezoStar technology)
• Noise performance: low-noise electronics; case-isolated for improved EMI immunity
• Housing: welded titanium
• Cable: integrated, patented attachment
• Connector: standard four-pin industrial connector (1/4-28 UNF pos.)
• TEDS: included on applicable variants
• Manufacturing origin: Manufactured in Switzerland
